Gealan Linear S8000
The upgraded option for maximum flexibility and quality, without compromise. The Gealan 75 profile system meets the needs of the market with high performance coefficients. A distinctive feature of the Gealan 75 is the optimized geometry of the profile in terms of material, which protects natural resources and therefore the environment – so important today.
Operation Type
Tilt & Turn, Fixed
Manufacturer
Gealan
Available Colors
Color
Color
Color
Color
Color
Color
Color Options
Standard Colors
 White |  Sandstone |  Dark Bronze |  RAL 7016: Antracite Grey |  RAL 9005: Deep Black |
RealWood - Exclusive Wood Decor Foil
*Realwood foils are not made of real wood
 Realwood woodec Turner Oak malt |  Realwood Ginger Oak |  Realwood Honey Oak |  Realwood Weissbach Oak |  Realwood RAL 7016 |  Realwood RAL 9010 |
Standard Decor Foils
 Haselnut |  Golden Oak |  Deco RAL 7016: Antracite Grey |
Non-standard decor foils
 Deco RAL 7001: Silver Grey |  Deco RAL 7016 Smooth: Anthracite Grey |  Deco RAL 9001: Cream White |  Deco RAL 9003: Brilliant White |  Deco RAL 9010: Pure White |  Chocolate Brown |  Winchester XA |
 Mahogany |  Dark Oak |  Sheffield Oak Light |
Image Gallery
Specifications
KEY FEATURES:
Glazing up to 44mm // 1.73"

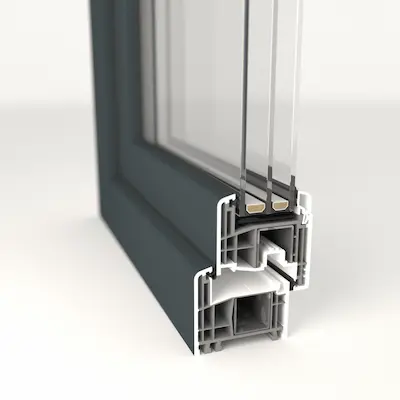

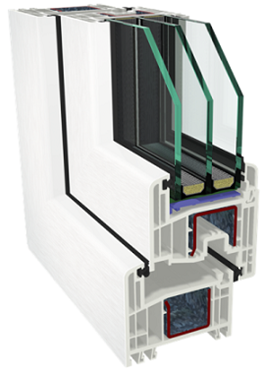

5 thermal insulation chambers
System with 2 sealing gaskets
FEATURE | VALUE |
Operation Type | Tilt & Turn |
Thermal Permeability | 1,1 w/ m²K |
Wards | 5 |
Tyres | 2 |
Waterproofing | 9A |
Wind Pressure Resistance | C5/B5 |
Air Permeability | 4 |
Construction Depth | 74mm // 2.91" |
TYPOLOGIES:
01  | 02  | 03  | 04  |
Tilt & Turn only | Tilt & Turn + Fixed | Tilt & Turn + Fixed + Turn only | Fixed above + Tilt & Turn below |
05  | 06  | ||
Tilt & Turn above + Fixed below | Two Tilt & Turns + Fixed |
BASIC EDITION:
 |  |  |  |
POSSIBLE UPGRADES:
Comfort & Quality of Life
Aluminum Downpour: Low aluminum threshold (2 cm high) that greatly facilitates access from the inside of the house to the balcony and reduces the risk of stumbling.

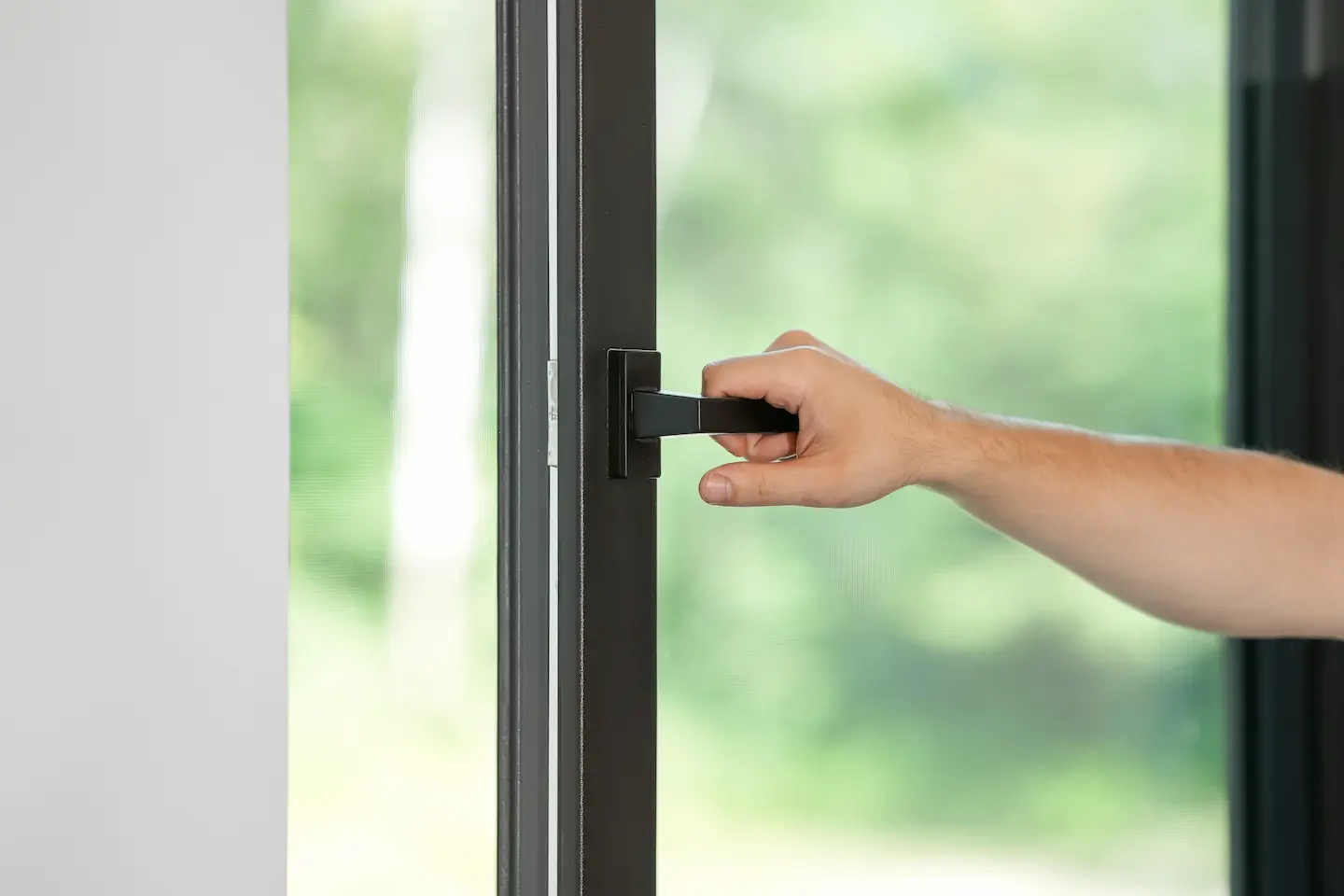

External Snapping Handle: A «smart» latch for comfortable closing of balcony doors from the outside, protecting the house from drafts. The elegant and ergonomic aluminum handle improves the appearance of balcony doors and ensures excellent durability.
Sound Absorbing Glass Panes: The sound absorbing glazing, consists of two panes of glass glued together with a special sound reducing membrane.
Glass Fibers within Vitrification
Safety
Energy Saving
Warm Edge: Glass gap with insulating material
Aesthetic
Handles and Mechanism Covers: In various colors
Glass Panels: In a wide variety of colors and designs
Decor Foils: Offer wood-grain patterns
