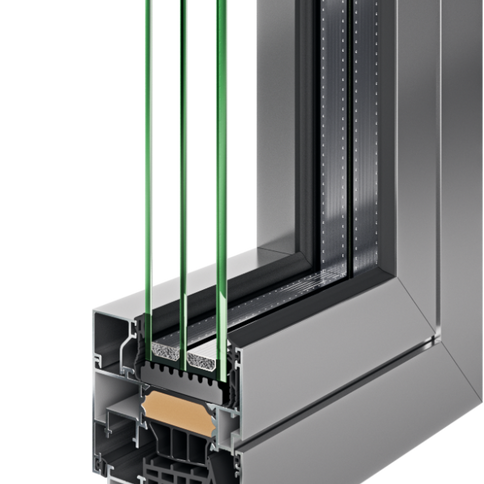

Elvial W77 AI²
The basic philosophy of ICONIC systems is unique design, which is the key to unique architectural creations. An Tilt-Turn system with unique character and outstanding design, high technology and functionality. By minimising the apparent height and with a combination of unique design profiles, ICONIC W77 AI² opening systems are the ideal solution when design is an absolute priority.
Operation Type
Tilt & Turn
Manufacturer
Elvial
Available Colors
Color
Color
Color
Color
Color
Color
Color Options
Image Gallery
Specifications
KEY FEATURES:
Construction depth 77mm
Coefficient of thermal transmittance up to 0.89 w/m² K
Sound reduction 50dB
Glazing up to 56mm
FEATURE | VALUE |
Operation Type | Tilt & Turn |
Thermal Permeability | 0.89-1.8 w/ m²K |
Noise Reduction | 50dB |
Tyres | 3 |
Type of Thermal Insulation | Insulating rods 42 mm wide, Foam insulating material |
Waterproofing | E1200 |
Air Permeability | 4 |
Wind Resistance | C5/B5 |
Construction Depth | 77mm // 3.03" |
Glazing Thickness | 56mm // 2.2" |
BASIC EDITION:
 |  |  |  |
POSSIBLE UPGRADES:
Comfort & Quality of Life
Safety
Energy Saving
Aesthetic
DOWNLOADABLE MATERIAL:
