Alumil SUPREME S91
The system SUPREME S91 was specially designed in order to meet the high requirements of passive houses. It is ideal for heavy duty and energy efficient constructions offering a high security level. The system’s development was driven by the need for best in class performances in terms of thermal insulation, water tightness, as well as sound reduction. The system is the perfect solution for the most demanding markets.
Operation Type
Tilt & Turn
Manufacturer
Alumil
Available Colors
Color
Color
Color
Color
Color
Color
Color Options
Neokem Prisma Sahara
 509 Mirage |  510 Sky |  511 Breeze |  507 Silver |  502 Grey |  504 Blue |  503 Greyblue |
 501 Black |  505 Green |  512 Oasis |  513 Flame |
Neokem Prisma Mesogeios
 801 Corsica |  802 Cassis |  803 Alexandria |  804 Alicante |  805 Valencia |  806 Antibes |  807 Nice |
 808 Rosetta |  809 Trieste |  810 Thera |  811 Andros |  812 Amalfi |  813 Positano |  814 Hydra |
 815 Crete |
Neokem Prisma Cosmos
 601 Meteora |  602 Aztec |  603 Nubia |  703 Palmyra |  702 Delos |  605 Atlas |  606 Duomo |
 610 Rio |  607 Manhattan |  611 Maui |  608 Aegean |
Ammos
 RAL 1013 |  RAL 1015 |  RAL 1019 |  RAL 3005 |  RAL 5003 |  RAL 5010 |  RAL 6005 |
 RAL 6009 |  RAL 7006 |  RAL 7012 |  RAL 7015 |  RAL 7016 |  RAL 7021 |  RAL 7022 |
 RAL 7024 |  RAL 7030 |  RAL 7034 |  RAL 7035 |  RAL 7038 |  RAL 7039 |  RAL 7040 |
 RAL 7042 |  RAL 7047 |  RAL 8003 |  RAL 8011 |  RAL 8014 |  RAL 8017 |  RAL 9005 |
 RAL 9010 |  RAL 9016 |
Sable Color Chart
Image Gallery
Specifications
KEY FEATURES:
Maximum energy savings thanks to the Passive House energy efficiency
High security level
Exceptional sound insulation
Modern design
Ease of use and high functionality
Exceptional quality with certified performances
Increased static loads and functionality in case of severe weather conditions
FEATURE | VALUE |
Operation Type | Tilt & Turn |
Mechanism | Euro-groove, Euro-nut |
Thermal Permeability | from 0,67 to 1,1 W/m²K |
Security | RC2/RC3 |
Sound Reduction | 47dB |
Sealing Method | Perimetrical at 3 levels with EPDM & foam EPDM gaskets |
Waterproofing | E1650 |
Air Permeability | 4 |
Wind Resistance | C5/B5 |
Frame Depth | 91mm // 3.58" |
Glazing Type | Double - Triple |
Glazing Thickness | 37 - 81mm // 1.45 - 3.188" |
Exterior Shape | Flat |

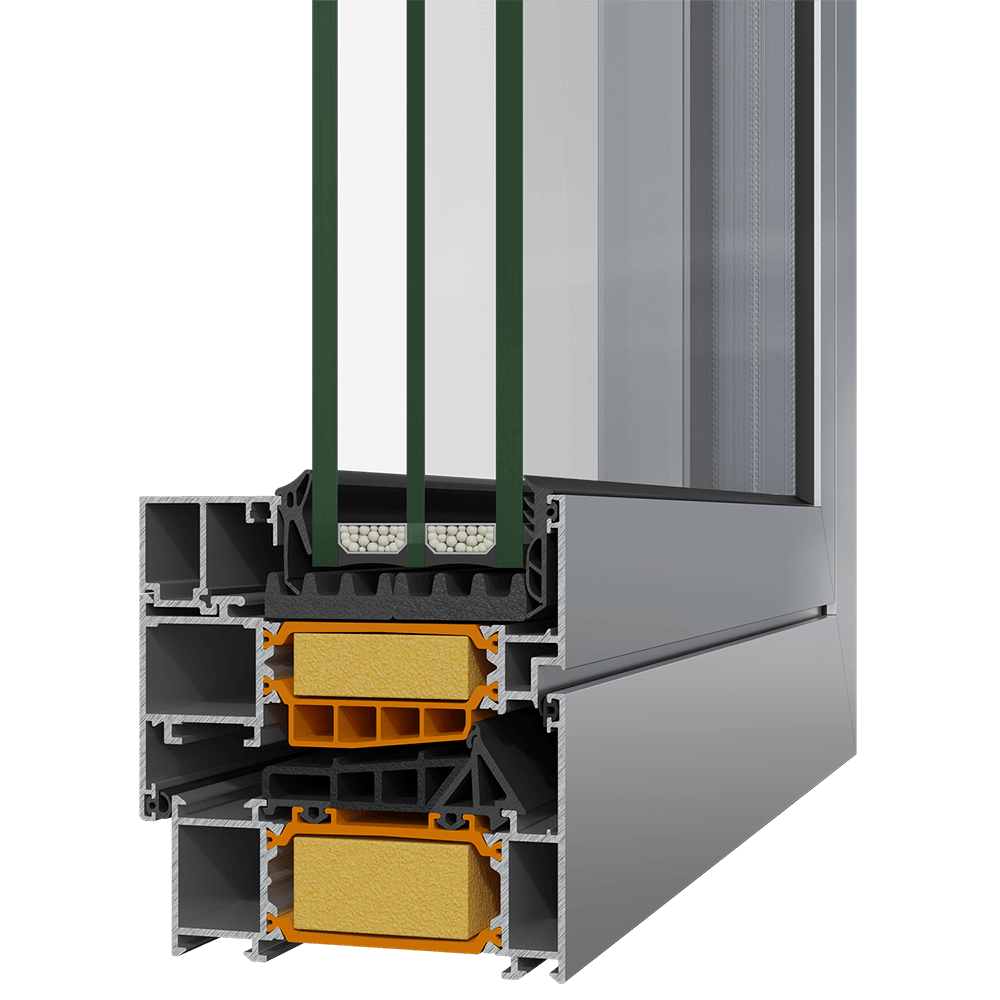

Type of Thermal Insulation | Polyamides 54 mm width, ALUMIL Energy bar, Insulation foam |
Minimum Threshold Height | 13mm // 0.51" |
Minimum Visible Aluminum Face Height | 91mm // 3.62" |
Minimum Visible Aluminum Width at the Central Vertical Column (Adjoining Profile) | 151mm // 5.94" |
Sash Weight | Up to 180kg |

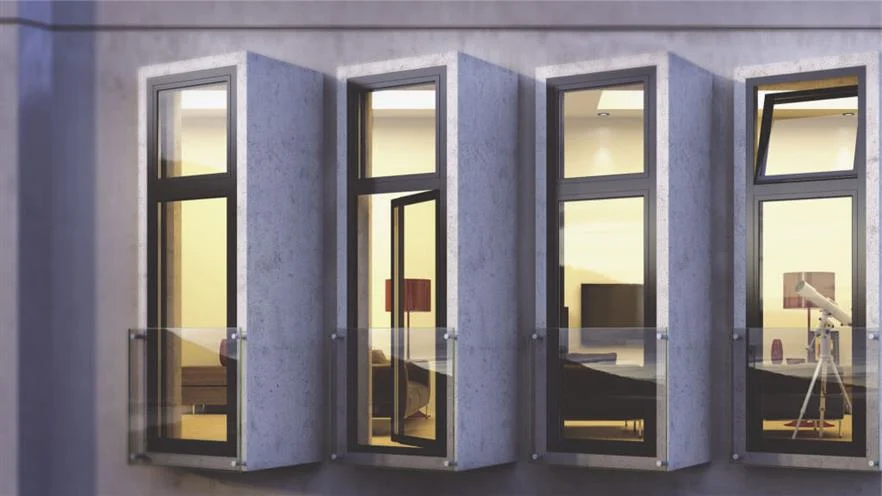

TYPOLOGIES:
For all tilt & turn typologies
01  One sash tilt and turn | 02  Tilt and turn with fix light on top | 03  Tilt and turn with fanlight | 04  Double tilt and turn window |
05  Double tilt and turn with light | 06  Double tilt and turn window with fixed light | 07  Double tilt and turn with fanlight | 08  Double tilt and turn with fixed lights sideways |
CERTIFICATIONS:
 |  |  |  |
DOWNLOADABLE MATERIAL:
SUPREME Brochure
Technical Brochure
