Alumil SUPREME S700

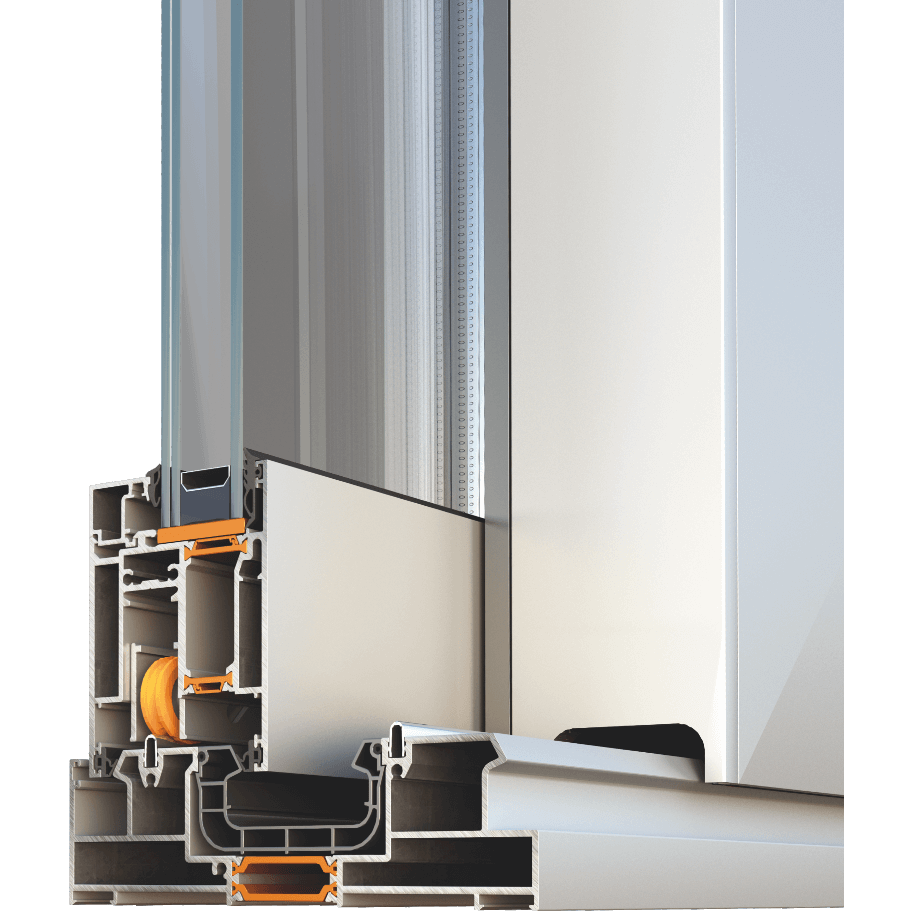

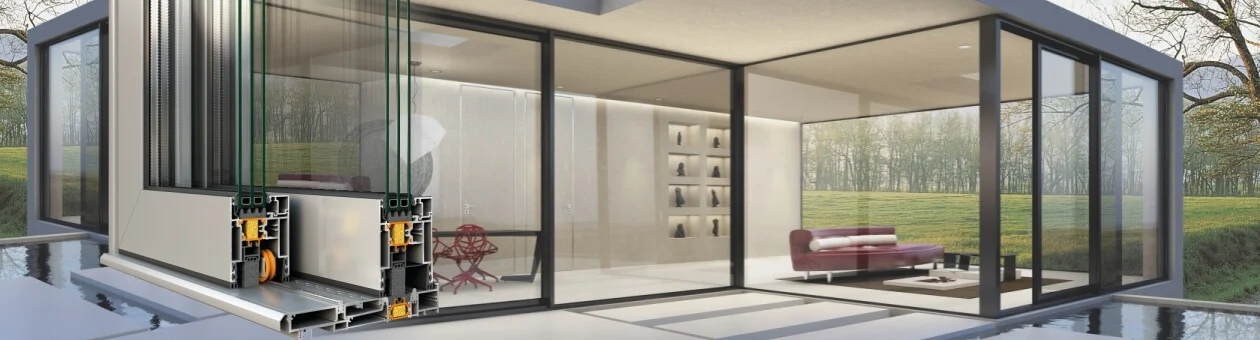

The lift & slide system SUPREME S700 represents the new generation of ALUMIL’s high-end systems. It is an excellent solution for projects with demanding requirements, meeting the trend of “transparent” architecture through extensive glass surfaces, with high thermal insulation, safety and modern design. Its minimal design and its various innovative characteristics, make it the ideal option for projects requiring wide spans for enhanced daylight, outstanding performance and maximum ease of use.
Operation Type
Sliding, Lift & Sliding
Manufacturer
Alumil
Available Colors
Color
Color
Color
Color
Color
Color
Color Options
Image Gallery
Specifications
KEY FEATURES:
Maximum ease of use and high functionality, optionally combined with automatic motion

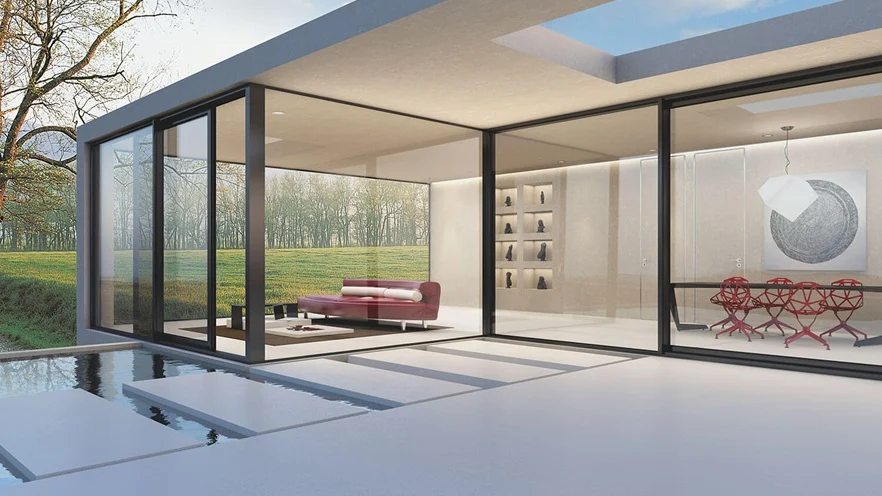

Enhanced natural light thanks to the wide glazing surfaces
High energy savings thanks to the exceptional energy efficiency
High security level
Exceptional sound insulation
Ease of access
Wide variety of typologies and solutions
Exceptional quality with certified performances
Increased static loads and functionality in case of severe weather conditions
Available solution for totally concealed bottom frame installation covered with the floor finish (version SUPREME S700 Eclipse)
FEATURE | VALUE |
Operation Type | Lift & Sliding |
Mechanism | Lift & slide mechanism |
Thermal Permeability | 1,1 W/m²K |
Security | RC2 |
Sound Reduction | 41dB |
Sealing Method | Perimetrical with EPDM gaskets & tri-fin brushes |
Waterproofing | E900 |
Air Permeability | 4 |
Wind Resistance | C4/B4 |
Sash Depth | 70mm // 2.75" |
Glazing Type | Double - Triple |
Glazing Thickness | 22 - 50mm // 0.86 - 1.968" |
Exterior Shape | Flat |
Type of Thermal Insulation | Polyamides 24mm, Thermoplastic |
Minimum Threshold Height | 24mm // 0.94" |
Minimum Visible Aluminum Face Height | 91mm // 3.58" |

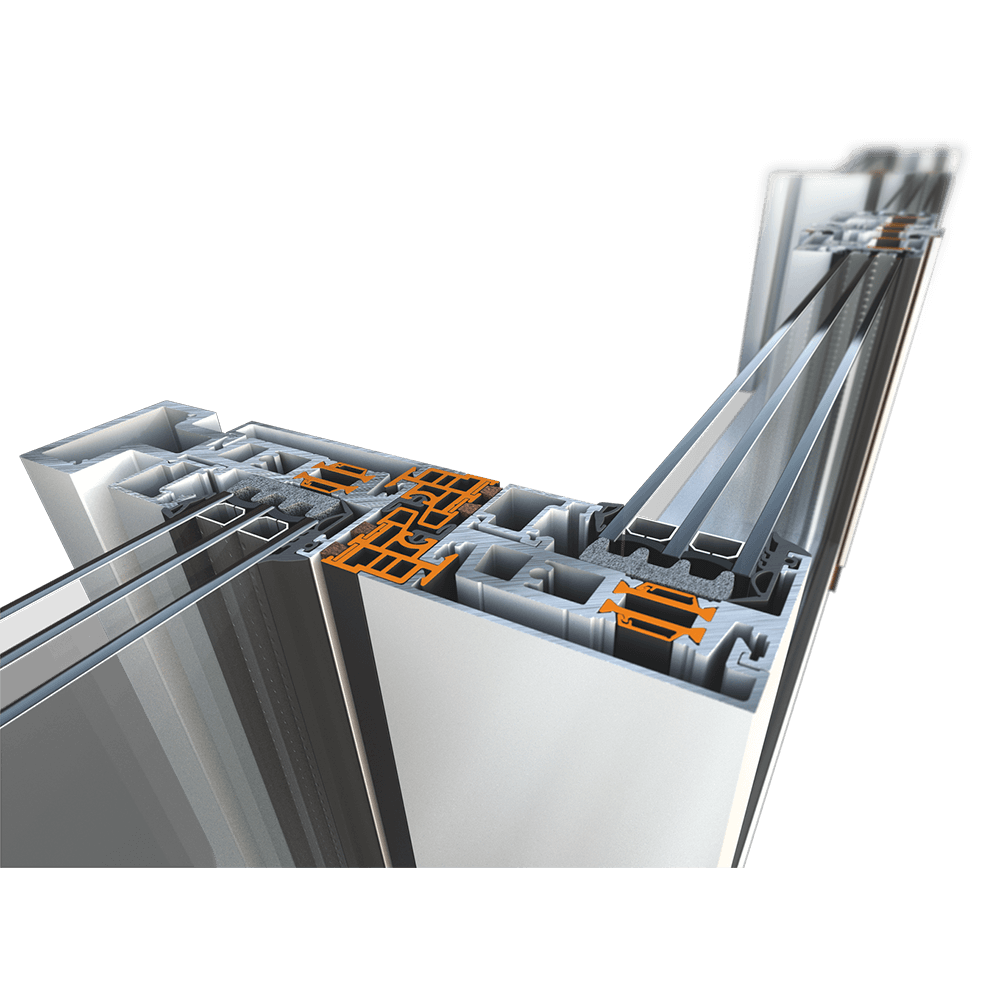

Minimum Visible Aluminum Width at the Central Vertical Column (Interlocking Profile) | 47mm // 1.85" |
Sash Weight | Up to 600kg |
TYPOLOGIES:
Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typologies, Combinations with fly-screen and shutter, Combinations with fixed lights.

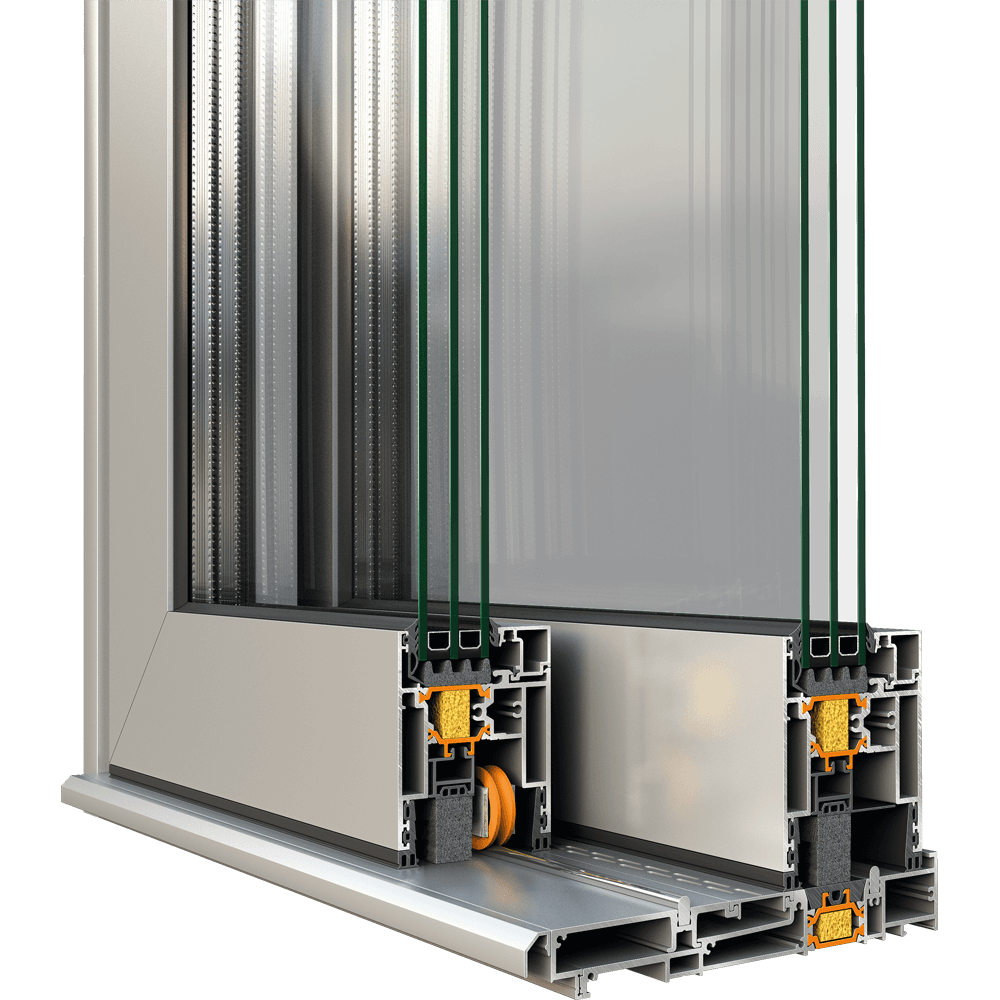

01  Double lifting sliding sash | 02 Double lifting sliding sash with narrow interlocking profile | 03  Four lifting sliding sashes meeting stile | 04 Four lifting sliding sashes meeting stile with narrow interlocking profile |

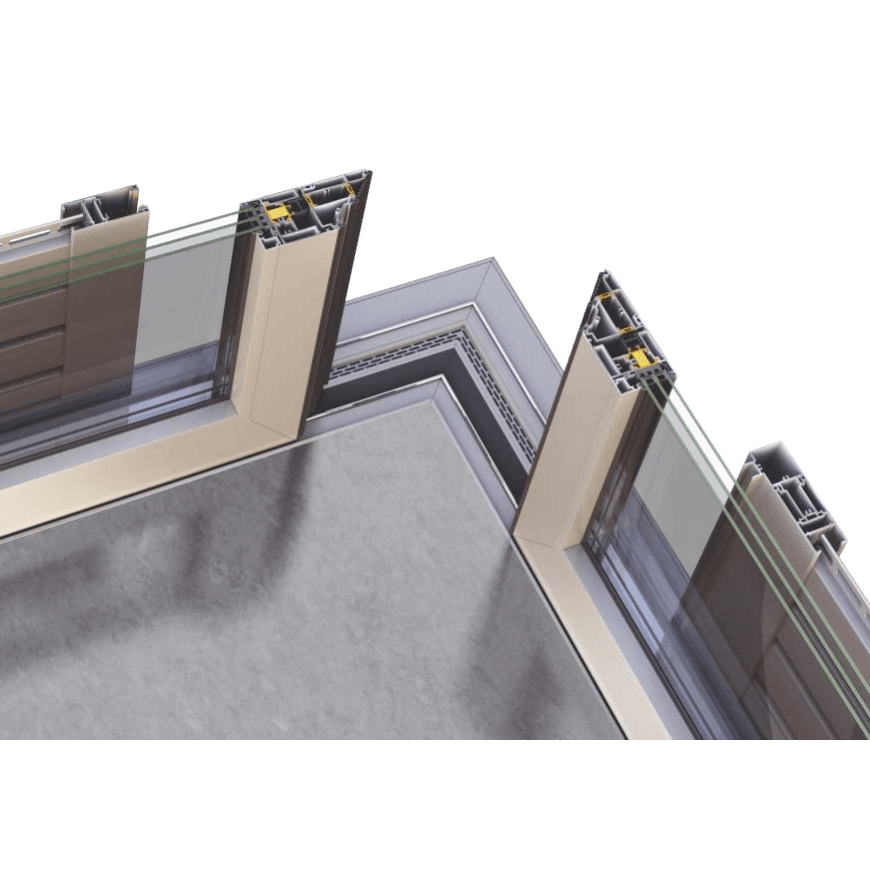

05  Corner typology with four lifting sliding sashes | 06  Triple lifting sliding sash | 07  Six lifting sliding sashes with meeting stile | 08  Single lifting sliding pocket sash with fly-screen & shutter |
09  Double lifting sliding pocket sash with meeting stile, with fly-screen & shutter | 10  Single lifting sliding sash with fixed light | 11  Two lifting sliding sashes with fixed light | 12  Single lifting sliding sash with two fixed lights |
13  Double lifting sliding sash with meeting stile & two fixed lights | 14  Double lifting sliding sash with fly-screen |
CERTIFICATIONS:
 |  |  |  |  |
DOWNLOADABLE MATERIAL:
SUPREME Brochure
System Specs
Technical Brochure
Fly-Screen Brochure
