Alumil SUPREME S650 PHOS

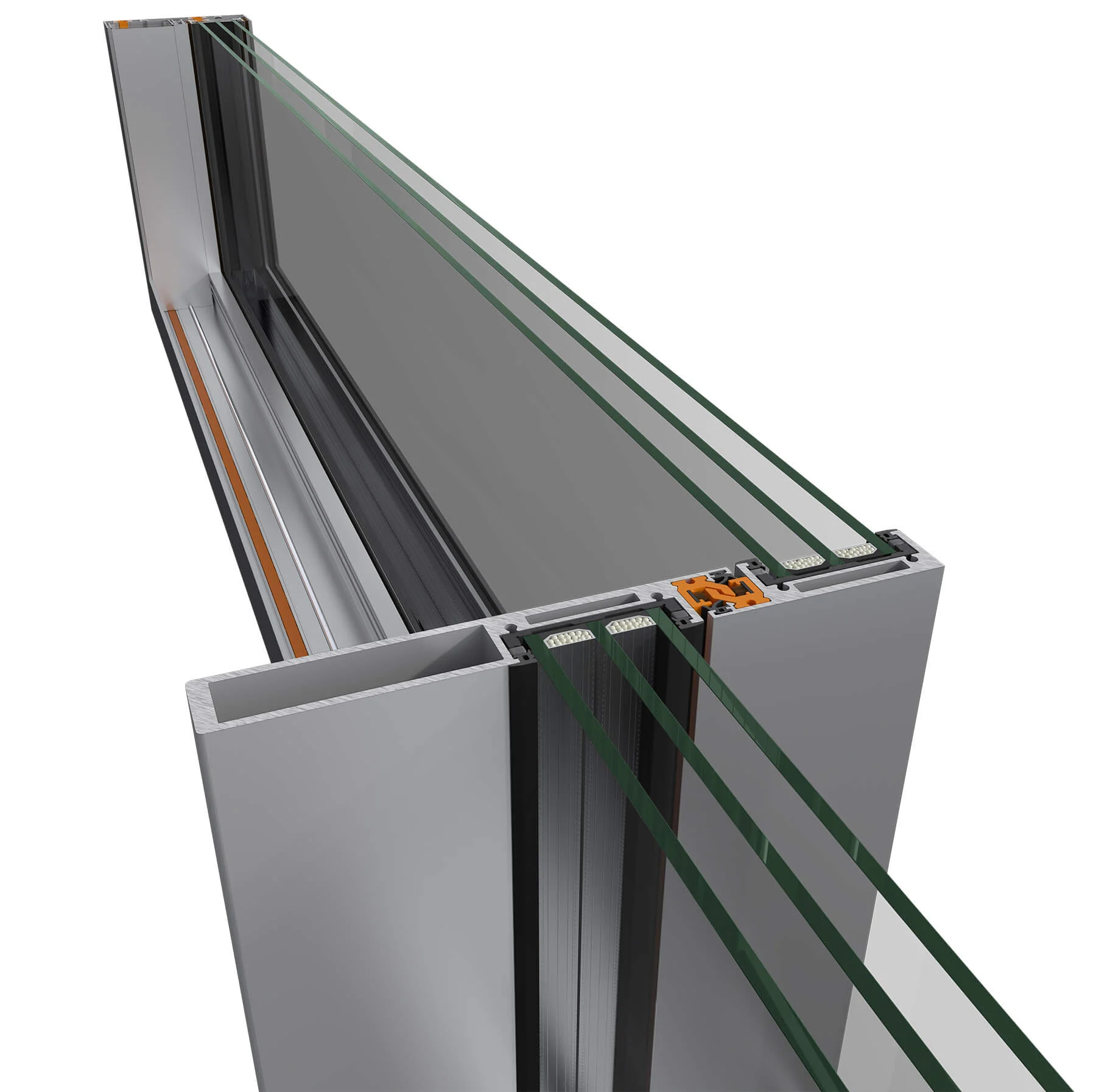

The thermally insulated sliding system SUPREME S650 PHOS is the ideal solution for projects requiring wide spans with minimal aluminium sight lines. Massive yet elegant glazing surfaces are achieved while maintaining high functionality, performances and minimal architectural design.
Operation Type
Sliding
Manufacturer
Alumil
Available Colors
Color
Color
Color
Color
Color
Color
Color Options
Image Gallery
Specifications
KEY FEATURES:
Enhanced natural light thanks to the system's minimal design and the wide glazing surfaces
High energy savings thanks to exceptional energy efficiency
High-security level
Exceptional sound insulation
Maximum ease of use and high functionality

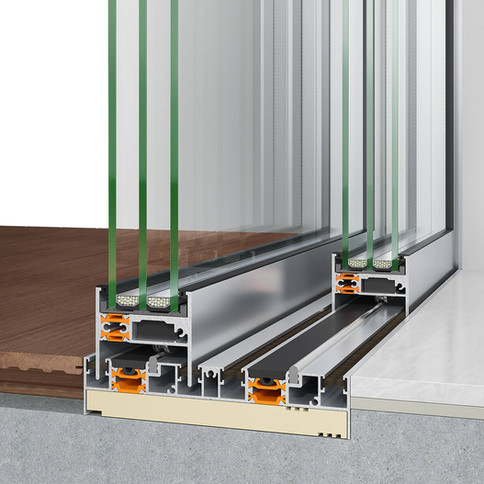

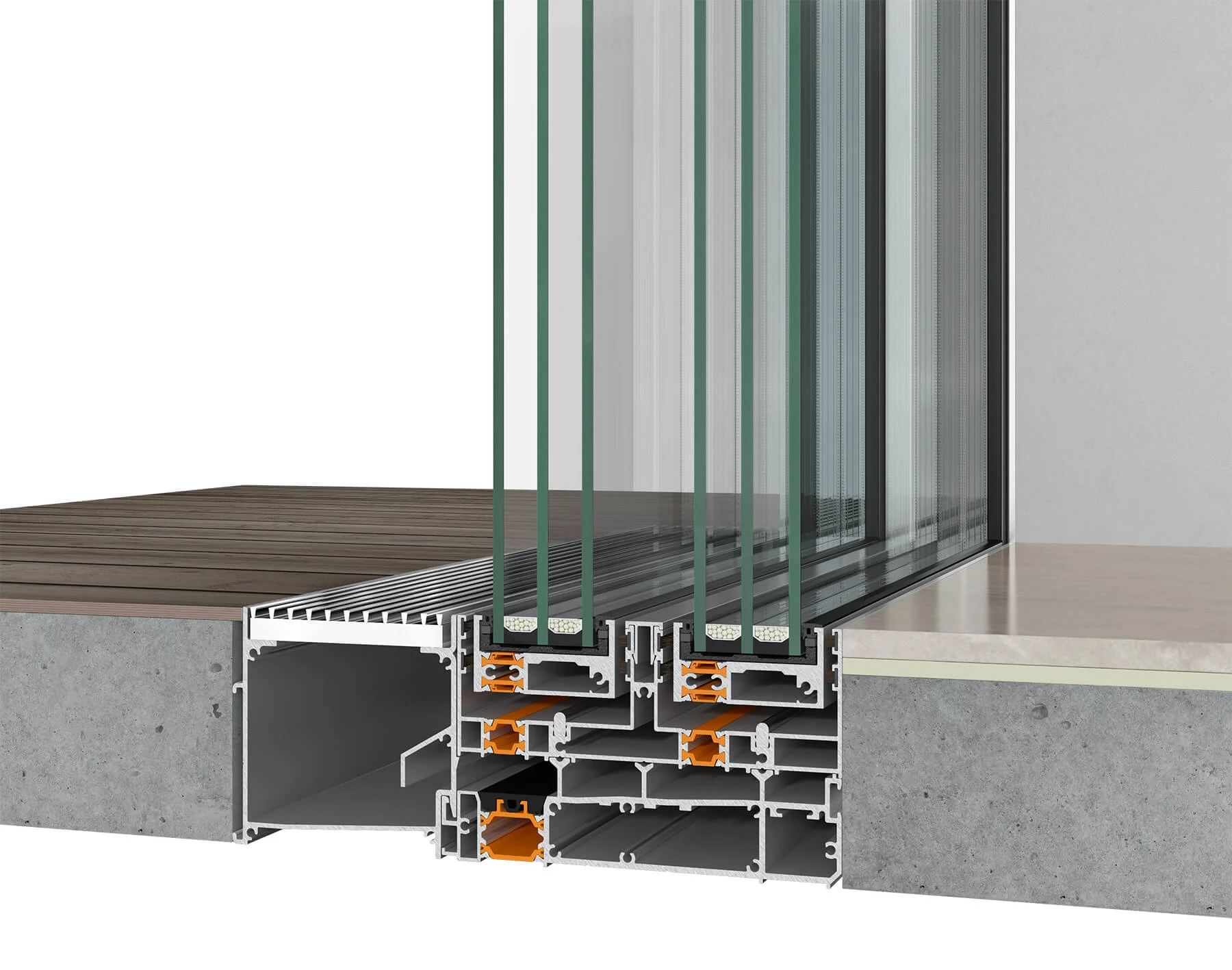

Available three alternative solutions for the on-floor installation, in-floor installation or totally concealed in-floor installation covered with the floor finish (version SUPREME S650 PHOS Eclipse)
Alternative version for automated sliding sashes (SUPREME S650 e-ΜΟΤΙΟΝ)
Ease of access according to specifications for people with special needs and children
Wide variety of typologies
Ideal for wide spans
Exceptional quality with certified performances
Increased static loads and functionality in case of severe weather conditions
FEATURE | VALUE |
Operation Type | Sliding |
Mechanism | ALUMIL |
Thermal Permeability | 1,1 W/m²K |
Security | RC2 |
Sound Reduction | 46dB |
Sealing Method | Perimetrical with tri-fin brushes |
Waterproofing | 9A |
Air Permeability | 4 |
Wind Resistance | C5 |
Construction Depth | 62mm // 2.44" |
Glazing Type | Double - Triple |
Glazing Thickness | up to 46mm // 1.81" |
Exterior Shape | Flat |
Type of Thermal Insulation | Polyamides, Thermoplastic |
Minimum Visible Aluminum Face Height | Concealed Profiles |
Minimum Visible Aluminum Width at the Central Vertical Column (Interlocking Profile) | 25mm // 0.98" |
Sash Weight | Up to 1000kg |
TYPOLOGIES:

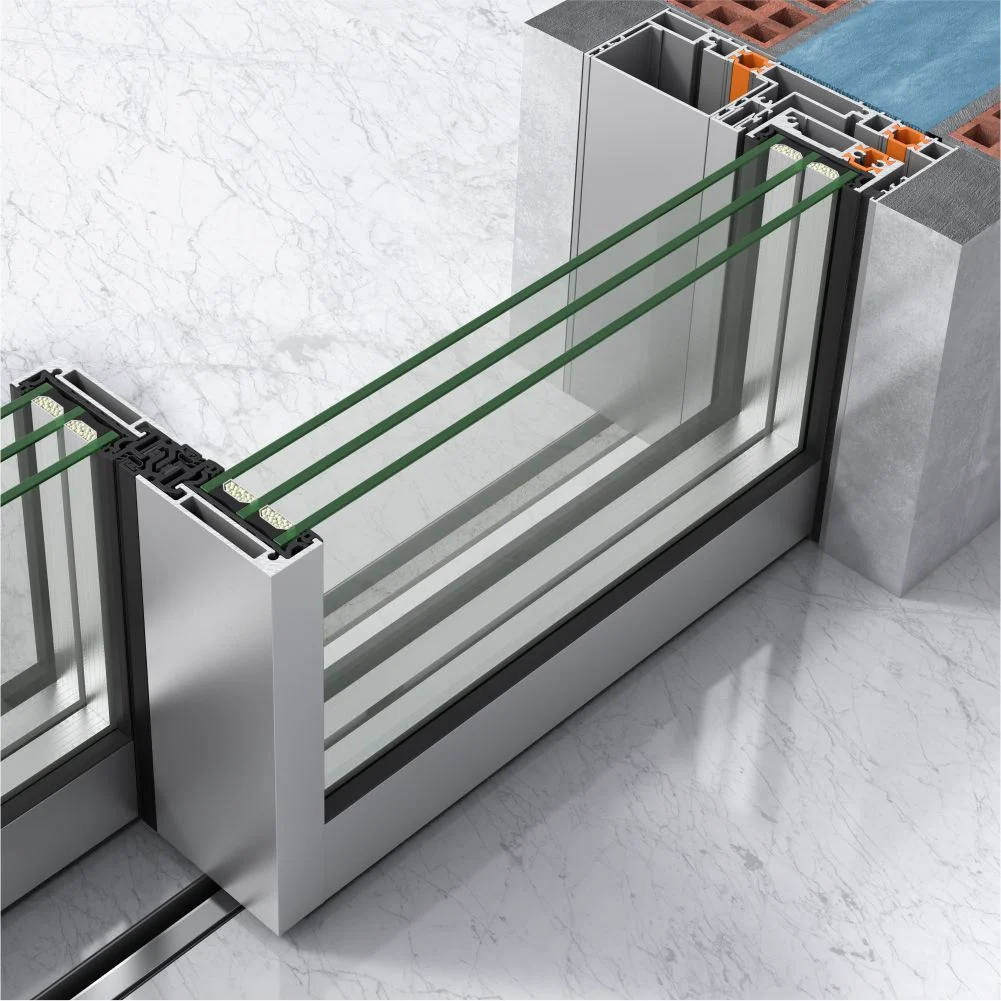

Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typologies, Combinations with fixed lights, Combinations with fly-screen.
01  Double horizontal sliding sash | 02  Single sliding sash with fixed light | 03  Four horizontal sliding sashes | 04  Four horizontal sliding sashes with meeting stile |

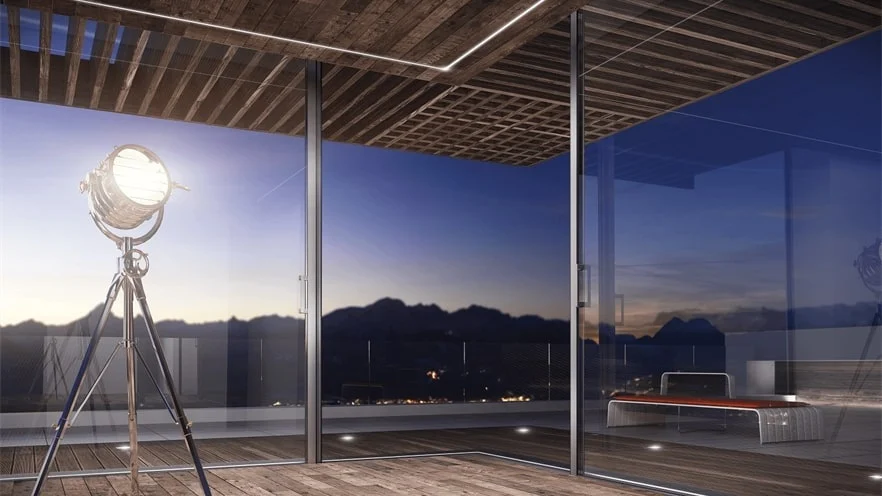

05  Corner typology window, with horizontal parallel sliding sashes | 06  Corner typology with two sliding sashes and fixed lights | 07  Triple horizontal sliding sash | 08  Four horizontal sliding sashes |
CERTIFICATIONS:
DOWNLOADABLE MATERIAL:
SUPREME Brochure
System Specs
Technical Brochure
Fly-Screen Brochure
