Alumil SUPREME S650 E-Motion

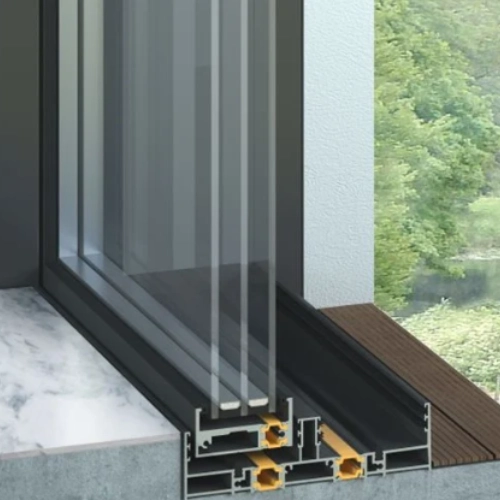

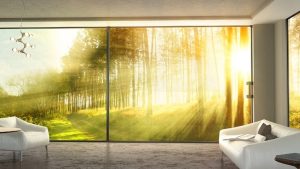

The SUPREME S650 e-Motion is ideal for covering large openings, as it offers robustness, but also a wide field of view. After all, the only 25mm visible aluminum at the point of superposition (where the two sheets meet), underline the minimal design. Furthermore, a characteristic element of the system is the hidden and fully built-in profiles, which enhance the minimal character and offer modern aesthetics. At the same time, the system has been enriched with new typologies for philosophical and angular constructions, which give even greater manufacturing flexibility. Finally, it is worth noting that, although the system is fully remotely controlled, there is the possibility of manual operation in case of need, while in any power outages it can work through the battery available to the mechanism.

Operation Type

Sliding

Manufacturer

Alumil

Available Colors

Pink Poppy Flowers

Color

Color

Color

Color

Color

Color

Color Options

Image Gallery


Specifications

KEY FEATURES:

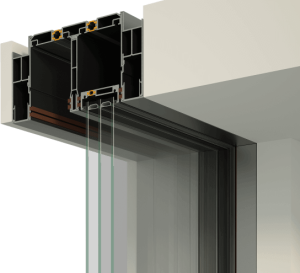

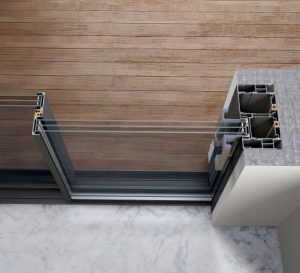

  • Main feature of the system the hidden profiles as they are fully integrated into the wall.

  • Electrical drive with remote control for ease of use.

  • Sensor system for motion control, electromagnetic locking, fire detection and circuit board (PCB) trap for maximum safety.

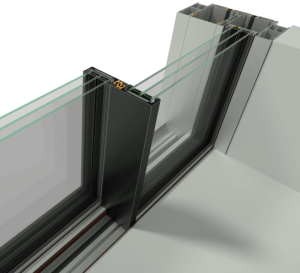

  • Narrow interface profile with only 25 mm visible aluminum width.

  • Battery included in the mechanism in cases of power failure.

  • Can also be operated manually in case of emergency.

  • Additional hidden profiles available for water drainage.

  • Compatible with “Smart house” application.

FEATURE

VALUE

Operation Type

Sliding

Mechanism

ALUMIL

Thermal Permeability

1,1 W/m²K

Security

RC2

Sound Reduction

46dB

Waterproofing

E1050

Air Permeability

3

Wind Resistance

C3

Construction Depth

62mm // 2.44"

Glazing Type

Double - Triple

Glazing Thickness

up to 50mm // 1.968"

Exterior Shape

Flat

Type of Thermal Insulation

Polyamides, PVC

Minimum Visible Aluminum Face Height

Concealed Profiles

Minimum Visible Aluminum Width at the Central Vertical Column (Interlocking Profile)

25mm // 0.98"

Sash Weight

Up to 700kg

TYPOLOGIES:

Superimposed, Multileaf, Fillet, Recessed, Corner, Combinations with fixed, Combinations with screens

01


Double horizontal sliding sash

02


Single sliding sash with fixed light



DOWNLOADABLE MATERIAL:


SUPREME Brochure


System Specs
