Alumil SMARTIA SD77
SMARTIA SD77 is ALUMIL’s system for quality entrance doors requiring modern design, high performance and emphasis on safety. The system provides the ability to create multiple constructions combined either with aluminium panels or with glazing infills. Thanks to its modern, flat and coplanar design, it offers elegant uniformity that enhances the innovative design and aesthetics of the series.
Operation Type
Hinged
Manufacturer
Alumil
Available Colors
Color
Color
Color
Color
Color
Color
Color Options
Neokem Prisma Sahara
 509 Mirage |  510 Sky |  511 Breeze |  507 Silver |  502 Grey |  504 Blue |  503 Greyblue |
 501 Black |  505 Green |  512 Oasis |  513 Flame |
Neokem Prisma Mesogeios
 801 Corsica |  802 Cassis |  803 Alexandria |  804 Alicante |  805 Valencia |  806 Antibes |  807 Nice |
 808 Rosetta |  809 Trieste |  810 Thera |  811 Andros |  812 Amalfi |  813 Positano |  814 Hydra |
 815 Crete |
Neokem Prisma Cosmos
 601 Meteora |  602 Aztec |  603 Nubia |  703 Palmyra |  702 Delos |  605 Atlas |  606 Duomo |
 610 Rio |  607 Manhattan |  611 Maui |  608 Aegean |
Ammos
 RAL 1013 |  RAL 1015 |  RAL 1019 |  RAL 3005 |  RAL 5003 |  RAL 5010 |  RAL 6005 |
 RAL 6009 |  RAL 7006 |  RAL 7012 |  RAL 7015 |  RAL 7016 |  RAL 7021 |  RAL 7022 |
 RAL 7024 |  RAL 7030 |  RAL 7034 |  RAL 7035 |  RAL 7038 |  RAL 7039 |  RAL 7040 |
 RAL 7042 |  RAL 7047 |  RAL 8003 |  RAL 8011 |  RAL 8014 |  RAL 8017 |  RAL 9005 |
 RAL 9010 |  RAL 9016 |
Sable Color Chart

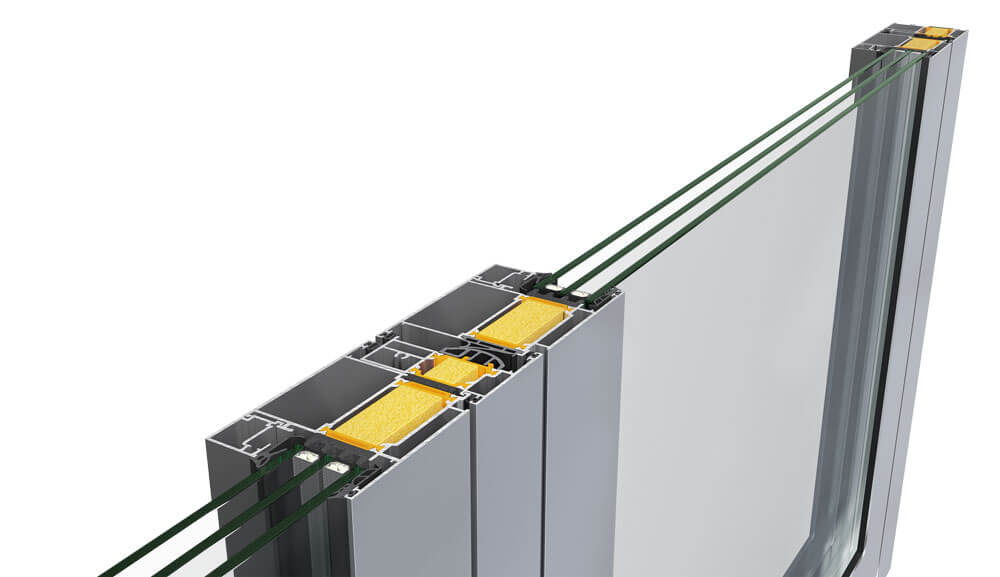

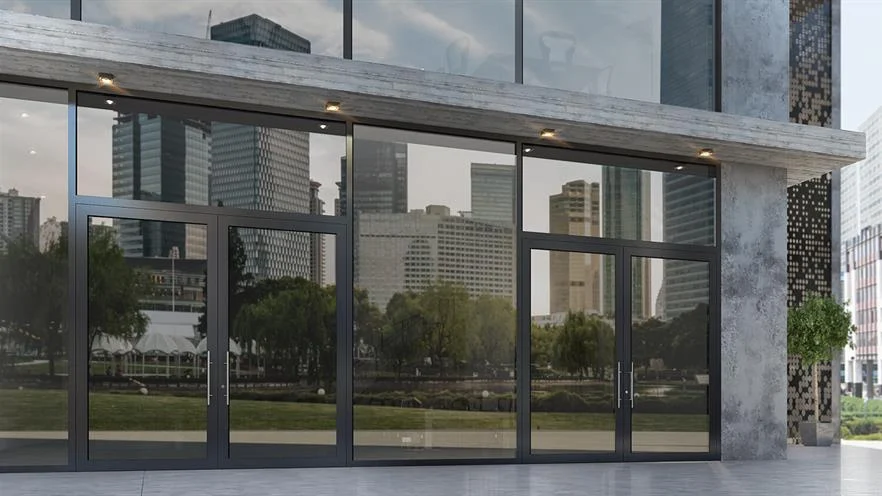

Image Gallery
Specifications
KEY FEATURES:
High energy savings thanks to high energy efficiency
High security level
Modern design
Ease of access, ideal for people with special needs and children
Exceptional sound insulation
Ease of use and high functionality
Wide variety of typologies and solutions
Exceptional quality with certified performances
FEATURE | VALUE |
Thermal Permeability | from 0,7 W/m²K |
Security | RC2 |
Tyres | Perimetrical at 3 levels with EPDM gaskets |
Waterproofing | 7A |
Wind Pressure Resistance | C4/B4 |
Air Permeability | 4 |
Construction Depth | 77mm // 3.03" |
Glazing Type | Double - Triple |
Glazing Thickness | 23mm -59mm // 0.90"-2.32" |
Exterior Shape | Flat |

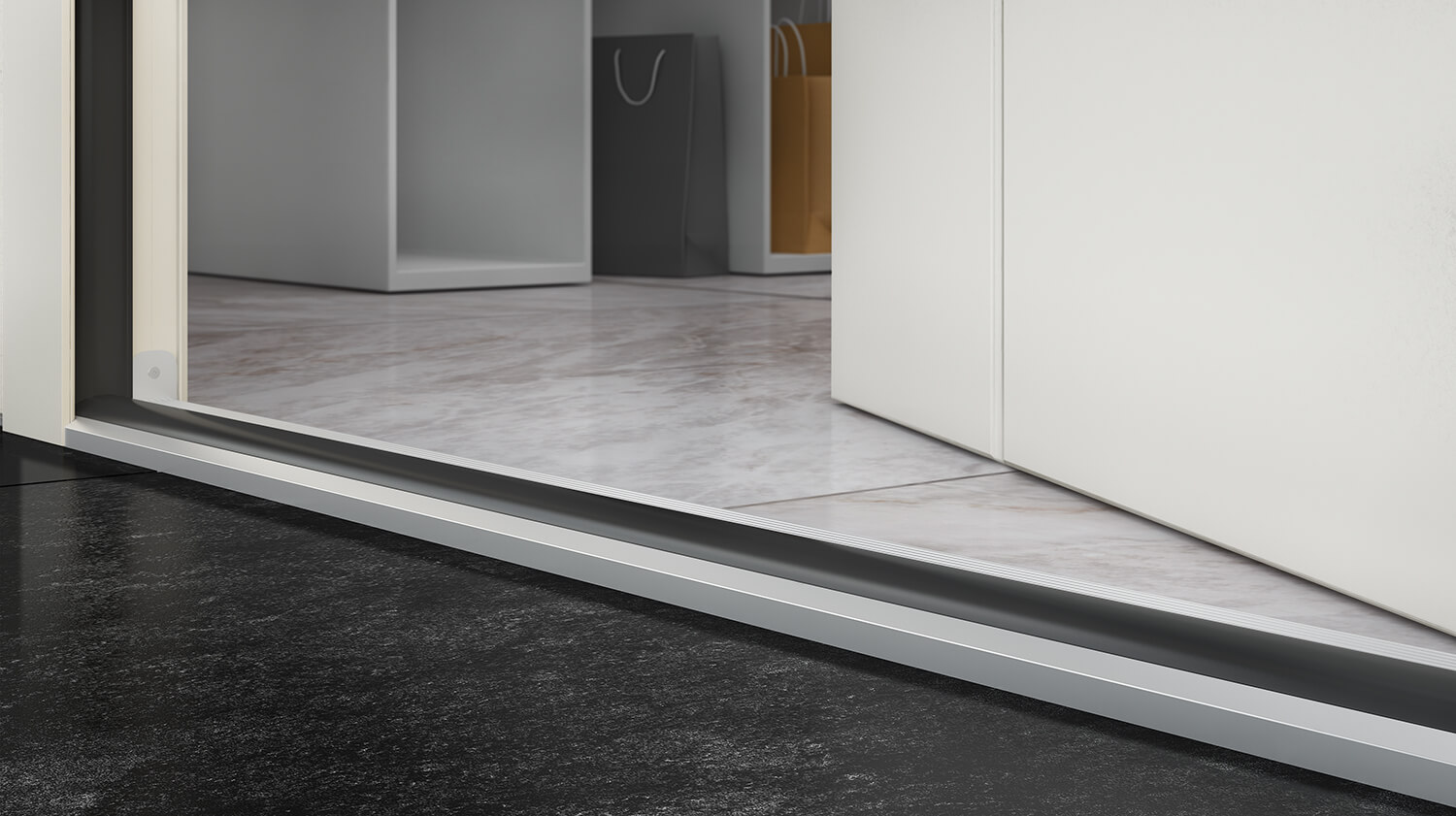

Minimum Threshold Height | 22mm // 0.866" |

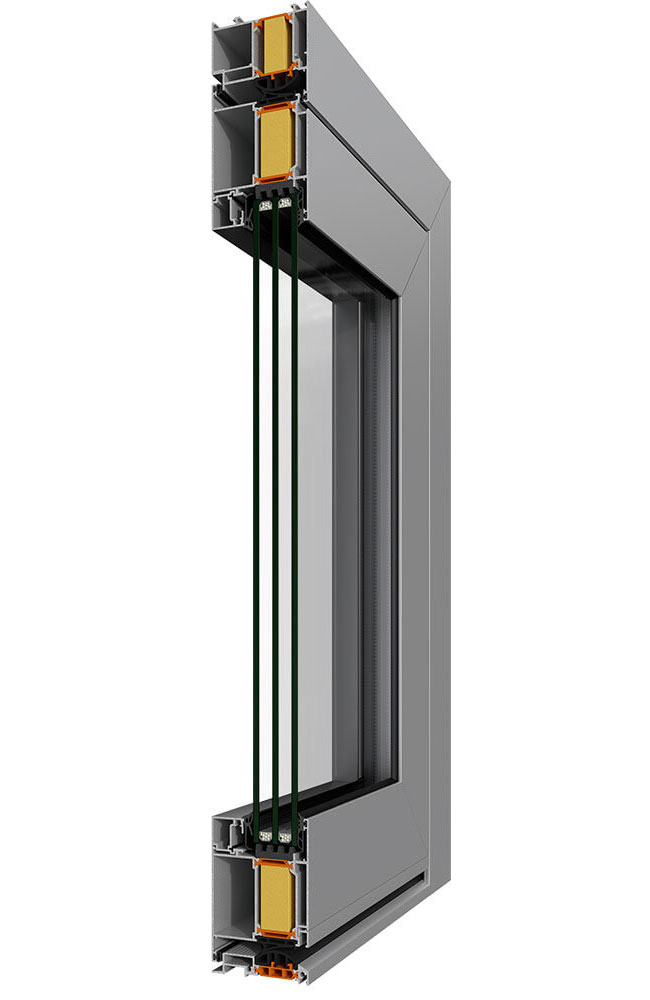

Type of Thermal Insulation | Polyamides 40mm width, ALUMIL Energy bar, Insulation foam |
Minimum Visible Aluminum Face Height | 117mm // 4.6" |
Frame Thermal Permeability | from 0,9 up to 1.9 W/m²K |
Sash Weight | Up to 180kg |
TYPOLOGIES:
For all entrance door typologies with glass or aluminum panels
01  | 02  | 03  | 04  | 05  |

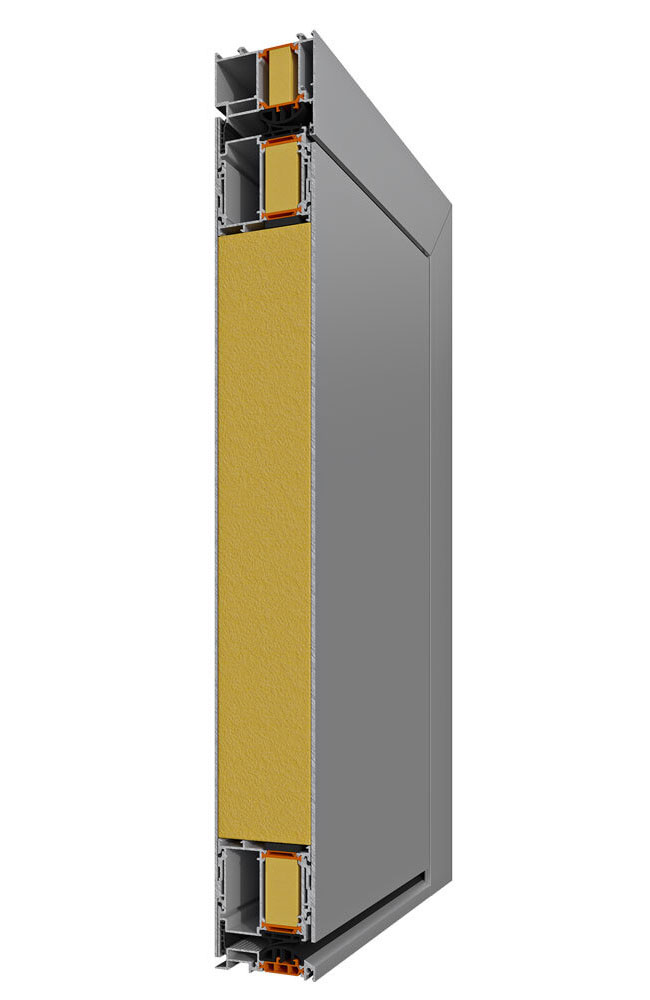

Hinged door inwards/outwards | Double leaf door inwards/outwards opening | Hinged door with insulation panel | Double leaf door with insulation panel | Hinged door inwards/outwards with insulation panel & fixed pane |
06  | 07  | 08  | ||
Hinged door with insulation panel, fixed pane & fanlight | Hinged door with insulation glazing panel & fixed pane | Hinged door with insulation glazing panel, fixed pane & fanlight |
CERTIFICATIONS:
DOWNLOADABLE MATERIAL:
Smartia Product Brochure
System Specs
Technical Brochure
