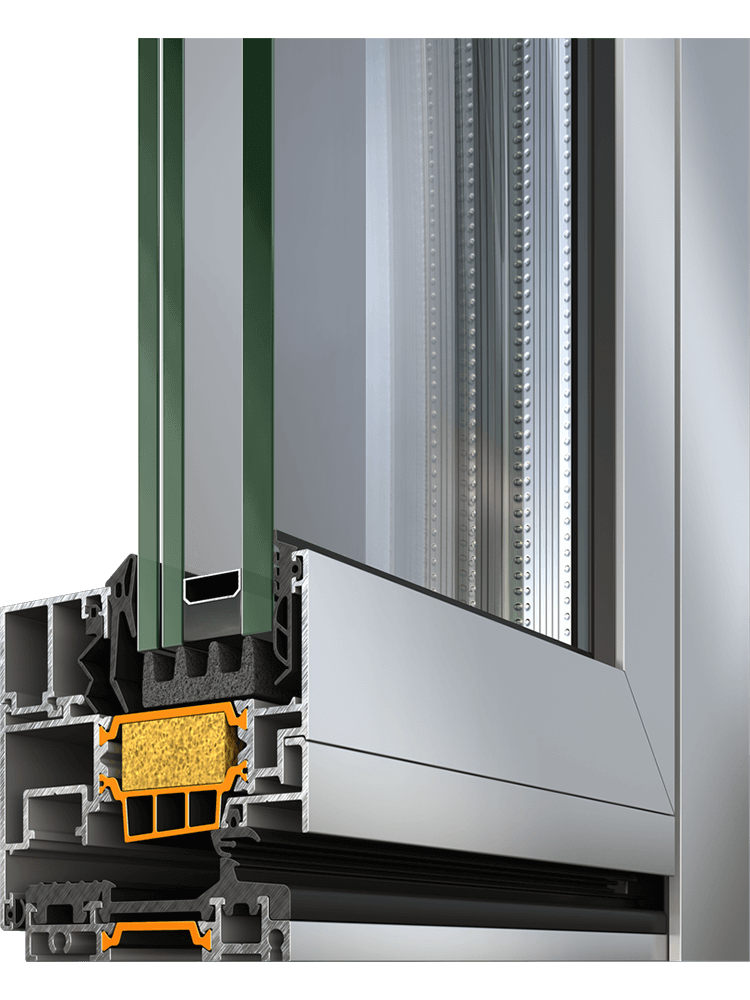

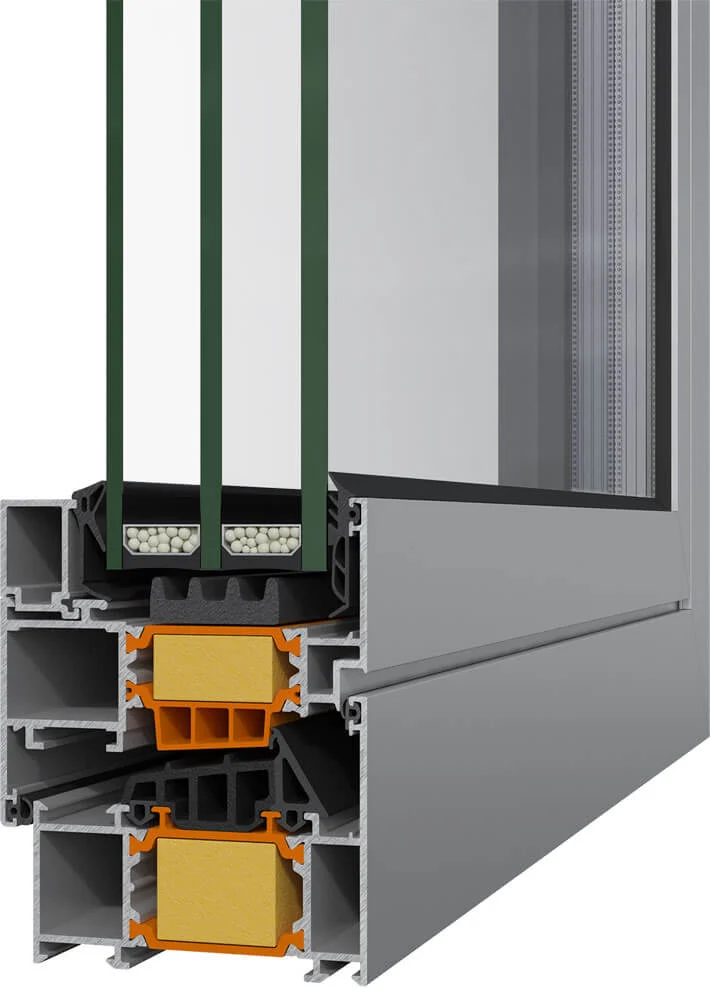

Alumil SMARTIA S77
The system SMARTIA S77 is ALUMIL's proposal for advanced insulating casements, which meet the high standards of all advanced markets and incorporate a modern design. It is the ideal solution for projects that require high performance and maximum security.
Operation Type
Tilt & Turn, Pivot
Manufacturer
Alumil
Available Colors
Color
Color
Color
Color
Color
Color
Color Options
Neokem Prisma Sahara
 509 Mirage |  510 Sky |  511 Breeze |  507 Silver |  502 Grey |  504 Blue |  503 Greyblue |
 501 Black |  505 Green |  512 Oasis |  513 Flame |
Neokem Prisma Mesogeios
 801 Corsica |  802 Cassis |  803 Alexandria |  804 Alicante |  805 Valencia |  806 Antibes |  807 Nice |
 808 Rosetta |  809 Trieste |  810 Thera |  811 Andros |  812 Amalfi |  813 Positano |  814 Hydra |
 815 Crete |
Neokem Prisma Cosmos
 601 Meteora |  602 Aztec |  603 Nubia |  703 Palmyra |  702 Delos |  605 Atlas |  606 Duomo |
 610 Rio |  607 Manhattan |  611 Maui |  608 Aegean |
Ammos
 RAL 1013 |  RAL 1015 |  RAL 1019 |  RAL 3005 |  RAL 5003 |  RAL 5010 |  RAL 6005 |
 RAL 6009 |  RAL 7006 |  RAL 7012 |  RAL 7015 |  RAL 7016 |  RAL 7021 |  RAL 7022 |
 RAL 7024 |  RAL 7030 |  RAL 7034 |  RAL 7035 |  RAL 7038 |  RAL 7039 |  RAL 7040 |
 RAL 7042 |  RAL 7047 |  RAL 8003 |  RAL 8011 |  RAL 8014 |  RAL 8017 |  RAL 9005 |
 RAL 9010 |  RAL 9016 |
Sable Color Chart

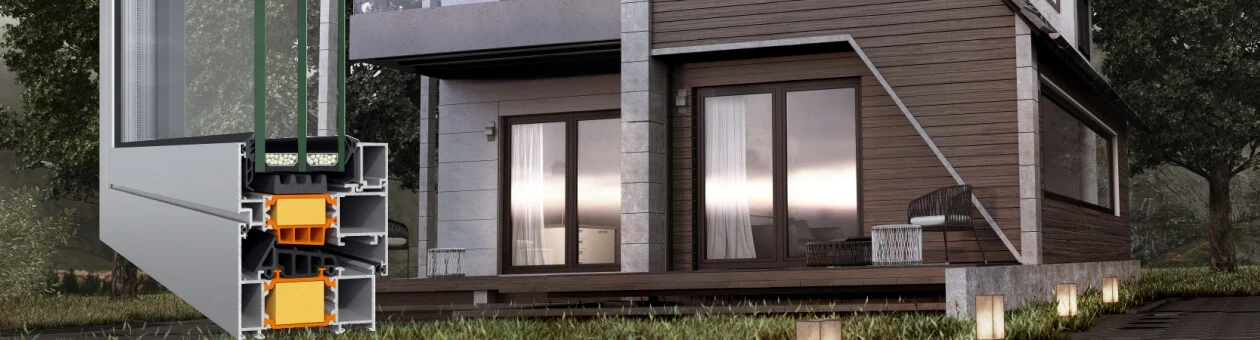

Image Gallery
Specifications
KEY FEATURES:
Very high energy savings thanks to high energy efficiency (Passive House certified)
High security level
Exceptional sound insulation
Ease of use and high functionality
Modern design
Ease of access according to specifications for people with special needs and children
Wide variety of typologies and solutions
Exceptional quality with certified performances
Increased static loads and functionality in case of severe weather conditions
Suitable for Passive House constructions in regions that lie in warm/temperate climate zone
FEATURE | VALUE |
Operation Type | Tilt & Turn, Pivoting |
Mechanism | Euro-groove, Euro-nut |
Thermal Permeability | from 0,85 to 2,42 W/m²K |
Security | RC2/RC3 |
Sound Reduction | 42dB |
Sealing Method | Perimetrical at 3 levels with EPDM & foam EPDM gaskets |
Waterproofing | E1350 |
Air Permeability | 4 |
Wind Resistance | C5/B5 |
Construction Depth | 77mm //3.03" |
Glazing Type | Double - Triple |
Glazing Thickness | 24 - 72mm // 0.94 - 2.83 " |
Exterior Shape | Flat |
Type of Thermal Insulation | Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam |
Minimum Visible Aluminum Face Height | 93mm // 3.66" |
Minimum Visible Aluminum Width at the Central Vertical Column (Adjoining Profile) | 122mm // 4.8" |
Sash Weight | Up to 180kg |
TYPOLOGIES:
For all tilt & turn typologies, pivot windows
01  One sash tilt & turn | 02  Single tilt & turn casement with P.W.D. low threshold | 03  Double tilt & turn window | 04  Double tilt & turn window with low threshold |
05  Double tilt & turn with light | 06  Double tilt & turn window with fixed light | 07  Double tilt & turn with fanlight | 08  Horizontal pivot window |
09  Vertical pivot window |
CERTIFICATIONS:
 |  |  |  |  |  |
DOWNLOADABLE MATERIAL:
SMARTIA Brochure
System Specs
Technical Brochure
