Alumil SMARTIA S67
SMARTIA S67 is the new complete Tilt & Turn system of ALUMIL, which combines outstanding thermal insulation performances along with high construction flexibility and exceptional design.
Operation Type
Tilt & Turn
Manufacturer
Alumil
Available Colors
Color
Color
Color
Color
Color
Color
Color Options
Neokem Prisma Sahara
 509 Mirage |  510 Sky |  511 Breeze |  507 Silver |  502 Grey |  504 Blue |  503 Greyblue |
 501 Black |  505 Green |  512 Oasis |  513 Flame |
Neokem Prisma Mesogeios
 801 Corsica |  802 Cassis |  803 Alexandria |  804 Alicante |  805 Valencia |  806 Antibes |  807 Nice |
 808 Rosetta |  809 Trieste |  810 Thera |  811 Andros |  812 Amalfi |  813 Positano |  814 Hydra |
 815 Crete |
Neokem Prisma Cosmos
 601 Meteora |  602 Aztec |  603 Nubia |  703 Palmyra |  702 Delos |  605 Atlas |  606 Duomo |
 610 Rio |  607 Manhattan |  611 Maui |  608 Aegean |
Ammos
 RAL 1013 |  RAL 1015 |  RAL 1019 |  RAL 3005 |  RAL 5003 |  RAL 5010 |  RAL 6005 |
 RAL 6009 |  RAL 7006 |  RAL 7012 |  RAL 7015 |  RAL 7016 |  RAL 7021 |  RAL 7022 |
 RAL 7024 |  RAL 7030 |  RAL 7034 |  RAL 7035 |  RAL 7038 |  RAL 7039 |  RAL 7040 |
 RAL 7042 |  RAL 7047 |  RAL 8003 |  RAL 8011 |  RAL 8014 |  RAL 8017 |  RAL 9005 |
 RAL 9010 |  RAL 9016 |
Sable Color Chart

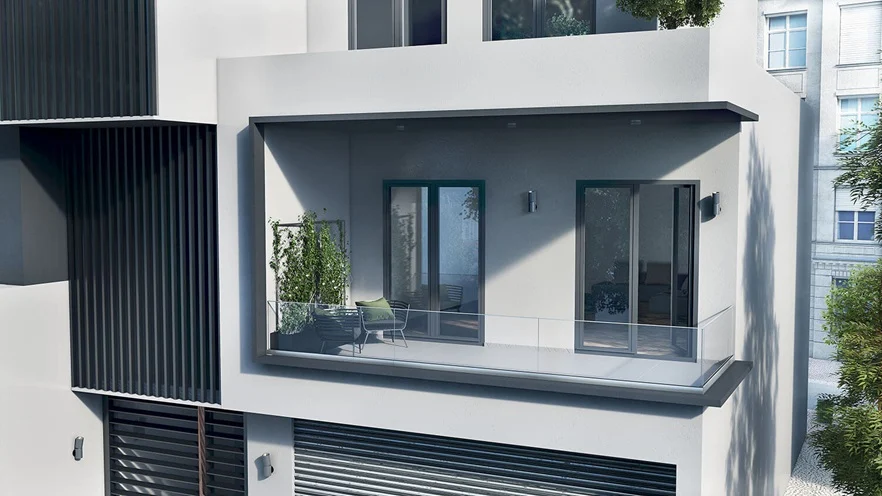

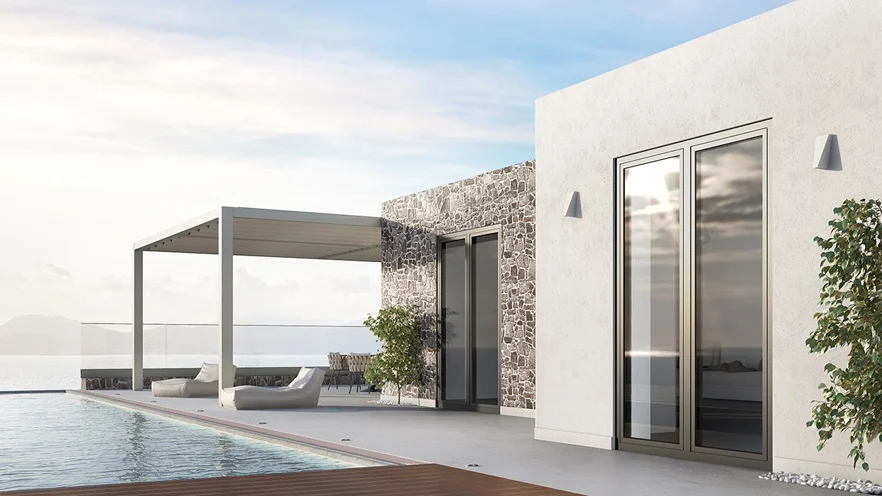

Image Gallery
Specifications
KEY FEATURES:
Very good value for money
High energy savings due to the high energy efficiency of the system
Increased level of security
High level of sound insulation
Ease of use and high functionality
Modern design for windows either with flat or curved line
Ease of access according to specifications for people with special needs and children
High quality with certified performances
Increased static loads and functionality in case of severe weather conditions
FEATURE | VALUE |
Operation Type | Tilt & Turn |
Mechanism | Euro-groove, Euro-nut |
Thermal Permeability | from 1,1 to 2,6 W/m²K |
Security | RC2/RC3 |
Sound Reduction | 45dB |
Sealing Method | Perimetrical at 3 levels with EPDM gaskets |
Waterproofing | E1200 |
Air Permeability | 4 |
Wind Resistance | C5 |
Construction Depth | 67mm // 2.637" |
Glazing Type | Double - Triple |
Glazing Thickness | up to 58mm // 2.28" |
Exterior Shape | Flat |

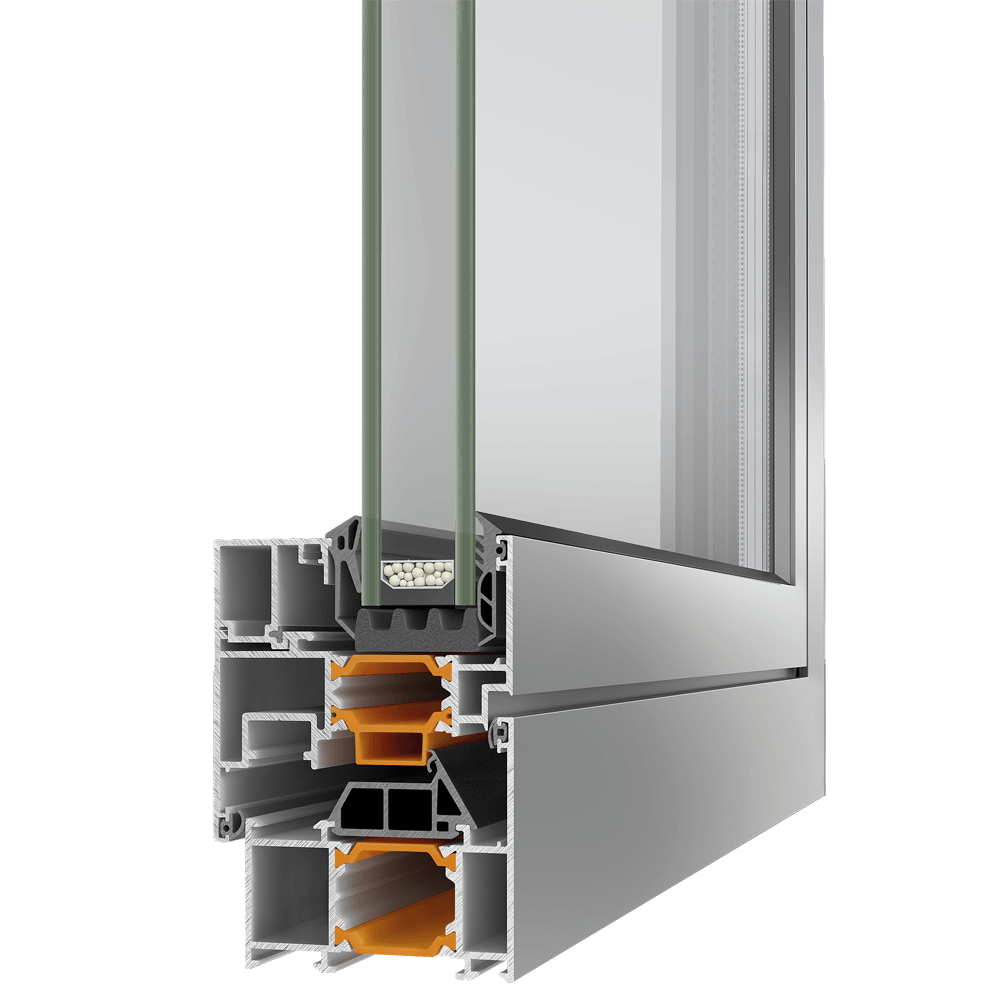

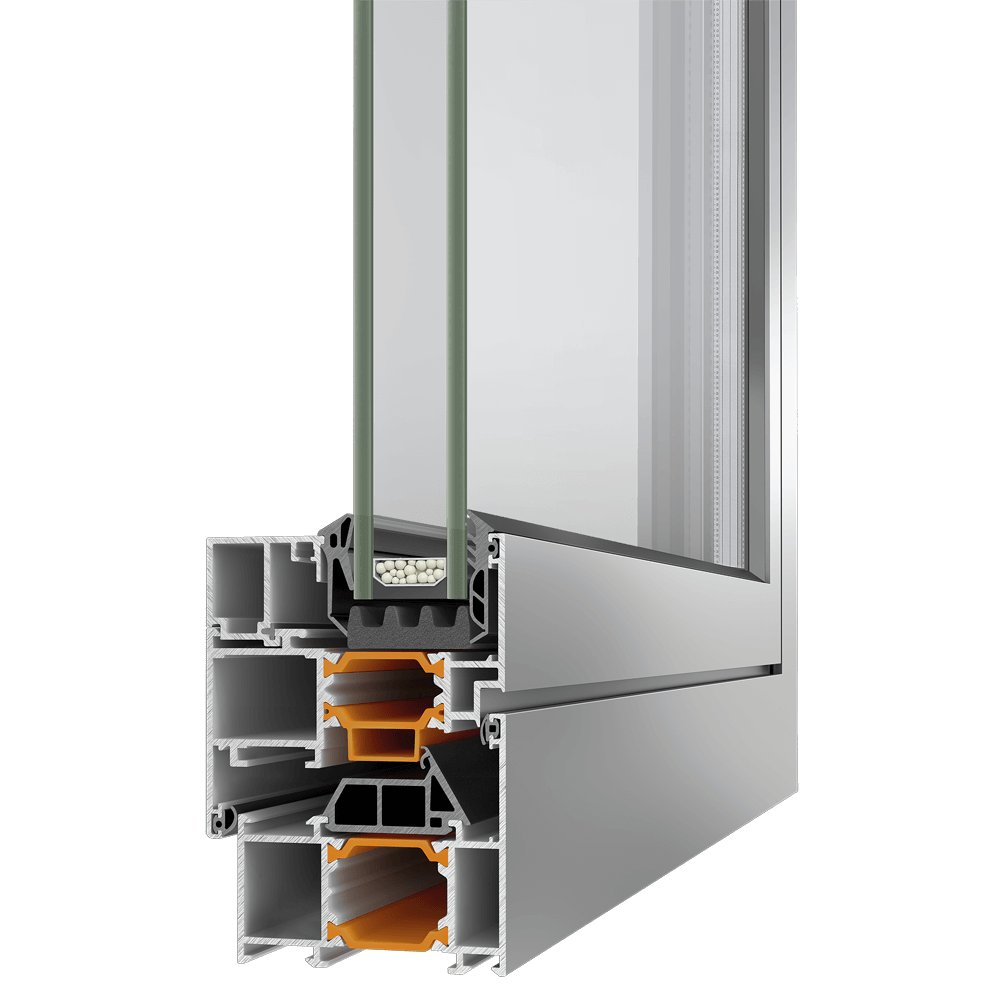

Type of Thermal Insulation | 30mm fiber glass polyamides, PE insulation Foam |
Minimum Threshold Height | 14mm // 0.55" |
Minimum Visible Aluminum Face Height | 93mm // 3.66" |
Minimum Visible Aluminum Width at the Central Vertical Column (Adjoining Profile) | 151mm // 5.94" |
Sash Weight | Up to 180kg |
TYPOLOGIES:
For all tilt & turn typologies
01  Fixed Window | 02  Double fixed lights | 03  One sash tilt & turn | 04  Tilt & Turn with fix light on top |
05  Tilt & Turn with fanlight | 06  Double tilt & turn window | 07  Double tilt & turn window with fixed light | 08  Double tilt & turn with fanlight |
09  Double tilt & turn with fixed lights sideways | 10  Double tilt & turn window with shutter |
