Alumil SMARTIA S350
Operation Type
Sliding
Manufacturer
Alumil
Available Colors
Color
Color
Color
Color
Color
Color
Color Options

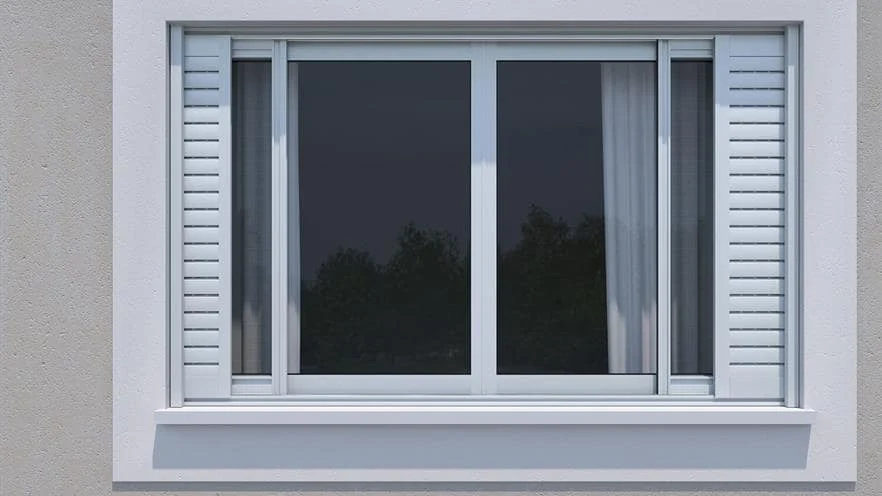

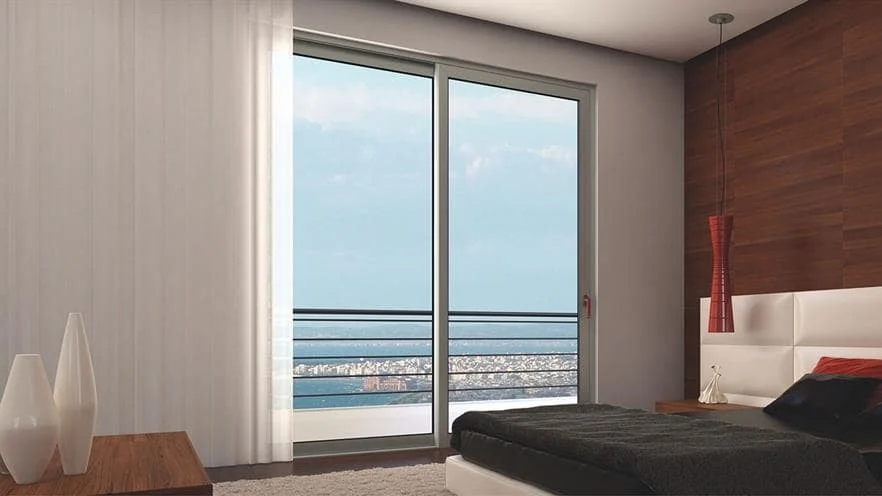

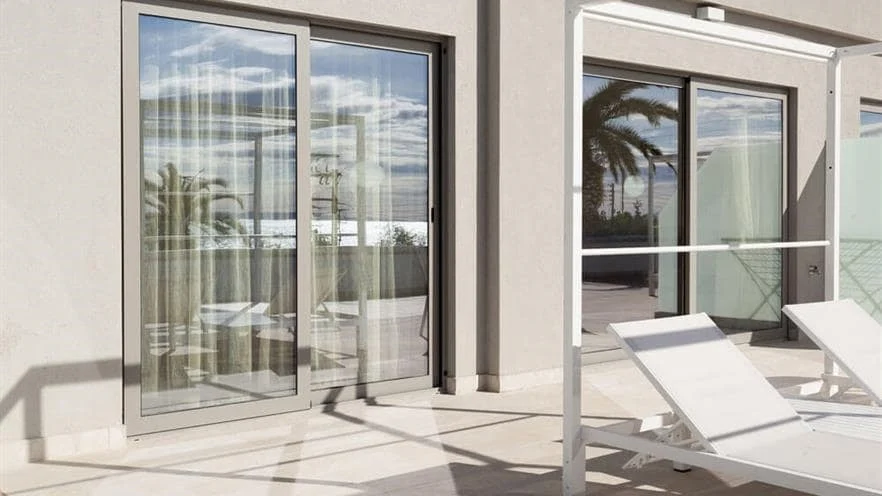

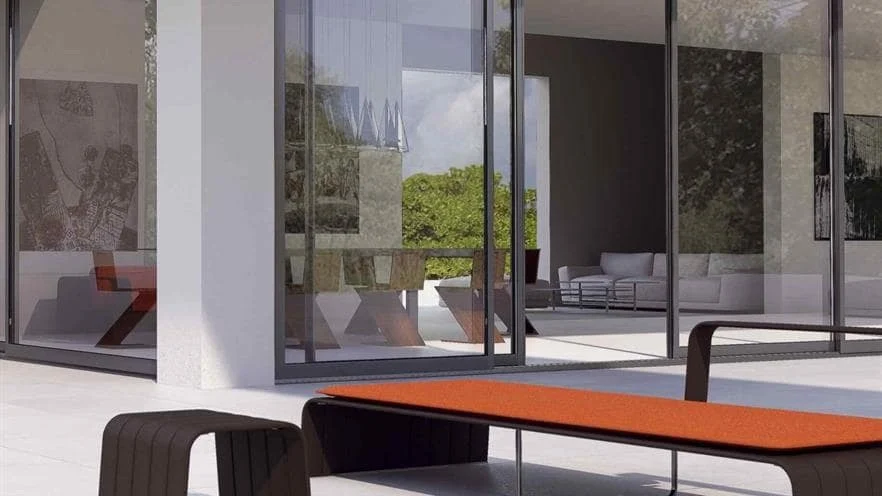

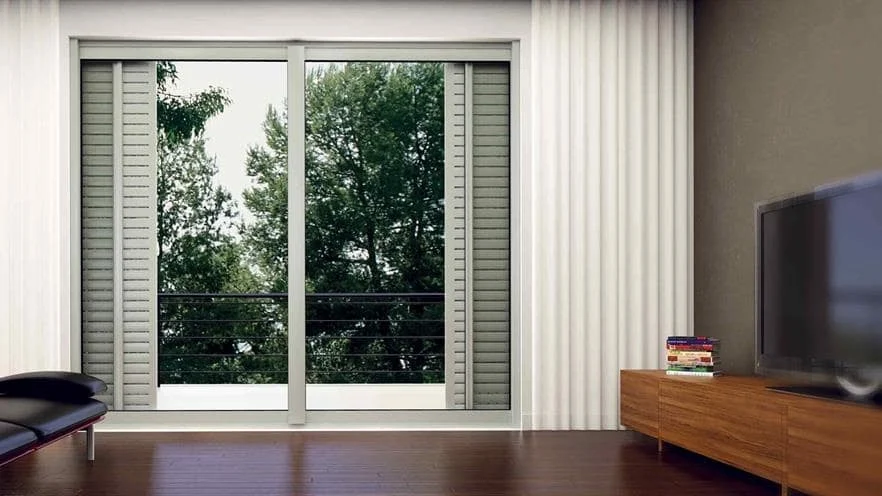

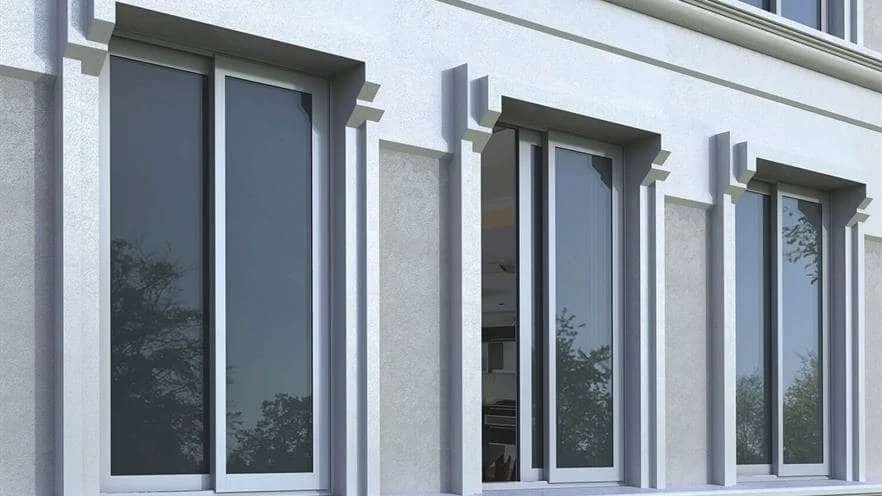

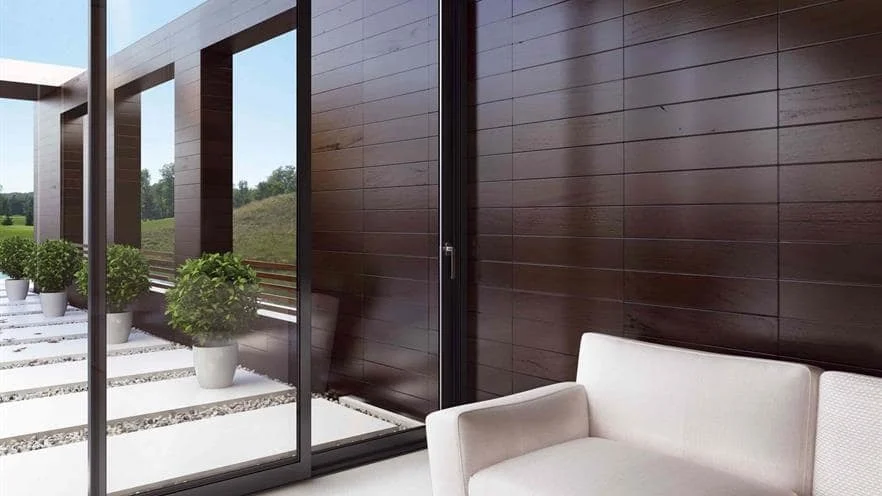

Image Gallery
Specifications
KEY FEATURES:

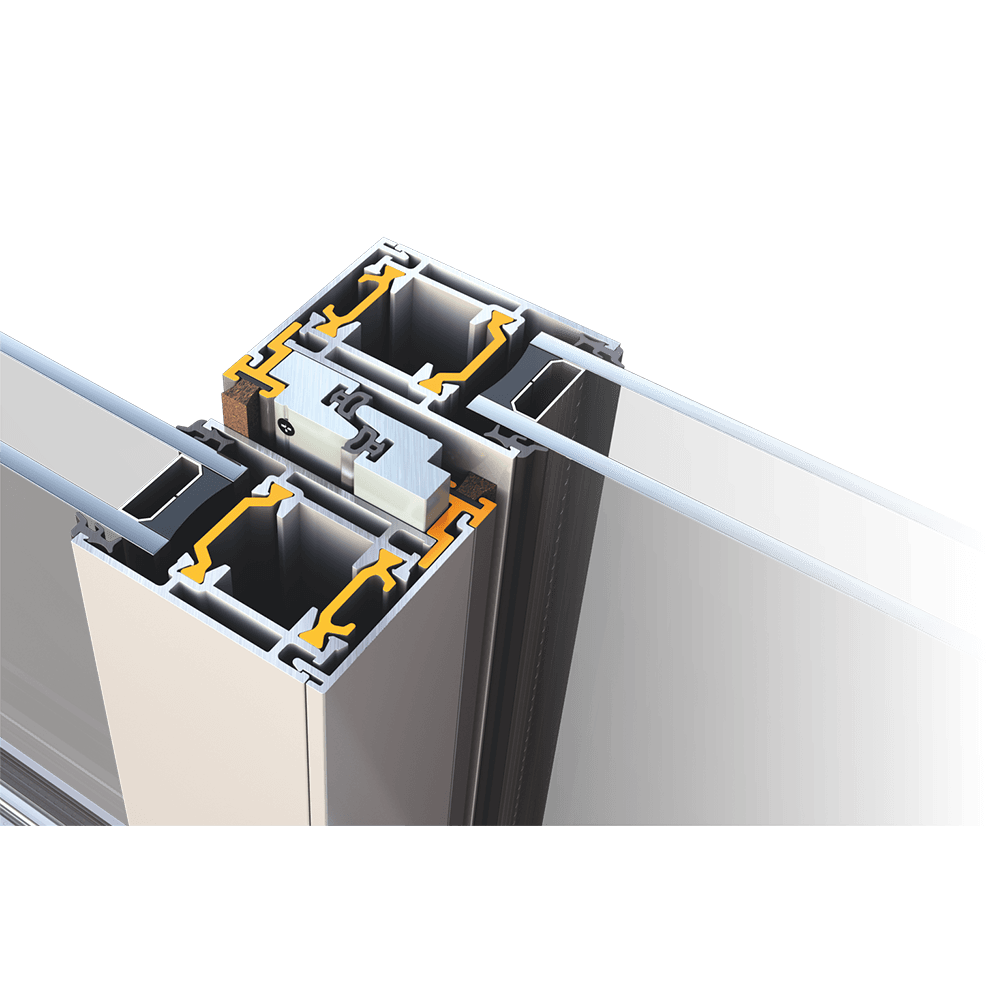

Maximum visibility and natural light, with only 25 mm width at the interlocking profile
Easy access with a low threshold, ideal for renovations (version SMARTIA S350 LT)
Significant energy savings, thanks to the system's energy efficiency
Wide variety of typologies, compatible with various mechanisms
High quality with certified performance
FEATURE | VALUE |
Operation Type | Sliding |
Mechanism | Perimetrical locking mechanism |
Thermal Permeability | from 2,4 up to 4,7 W/m²K |
Sound Reduction | 38dB |
Sealing Method | Continuous perimetrical tri-fin in two levels brush |
Waterproofing | 7A |
Air Permeability | 4 |
Wind Pressure Resistance | C2/B2 |
Construction Depth | 35mm // 1.259" |
Glazing Type | Double |
Glazing Thickness | up to 28mm // 0.866" |
Exterior Shape | Flat |

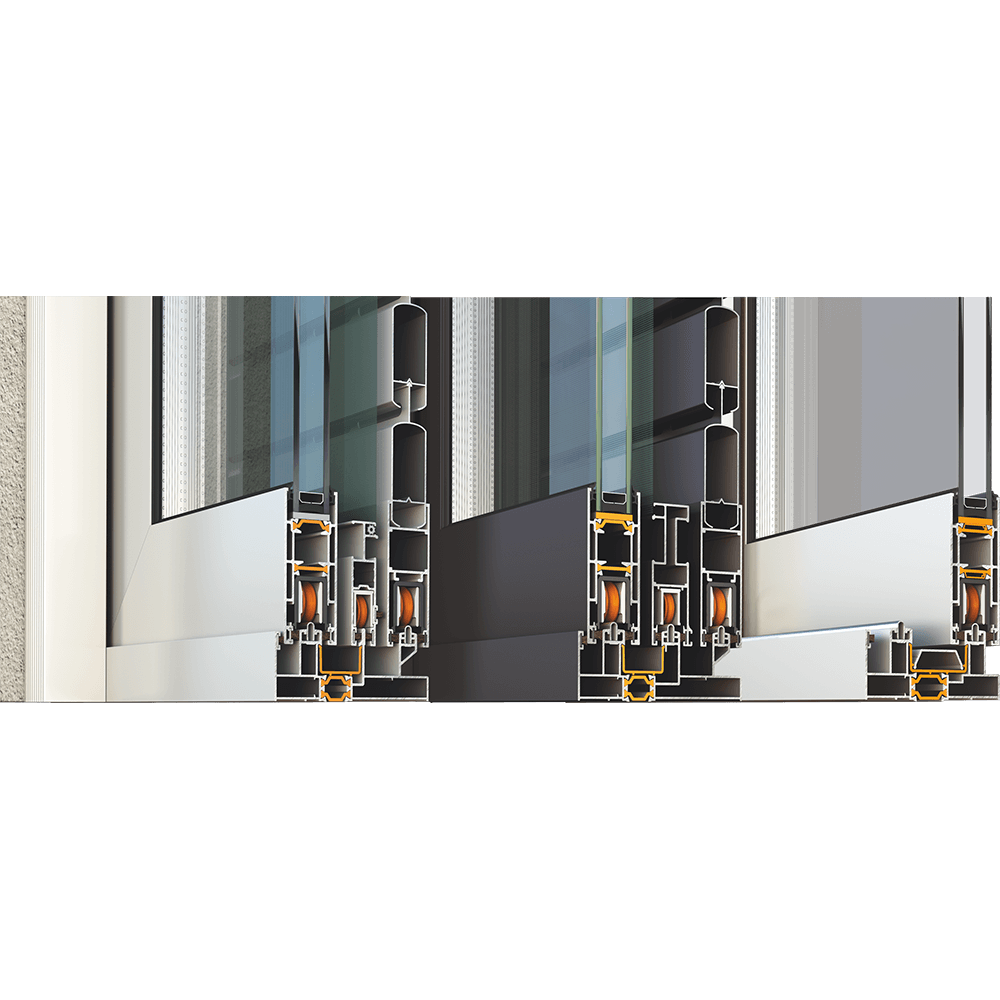

Type of Thermal Insulation | Polyamides 24mm, Thermoplastic |
Minimum Visible Aluminum Face Height | 101mm // 3.97" |
Minimum Visible Aluminum Width at the Central Vertical Column (Adjoining Profile) | 102mm // 4.01" |

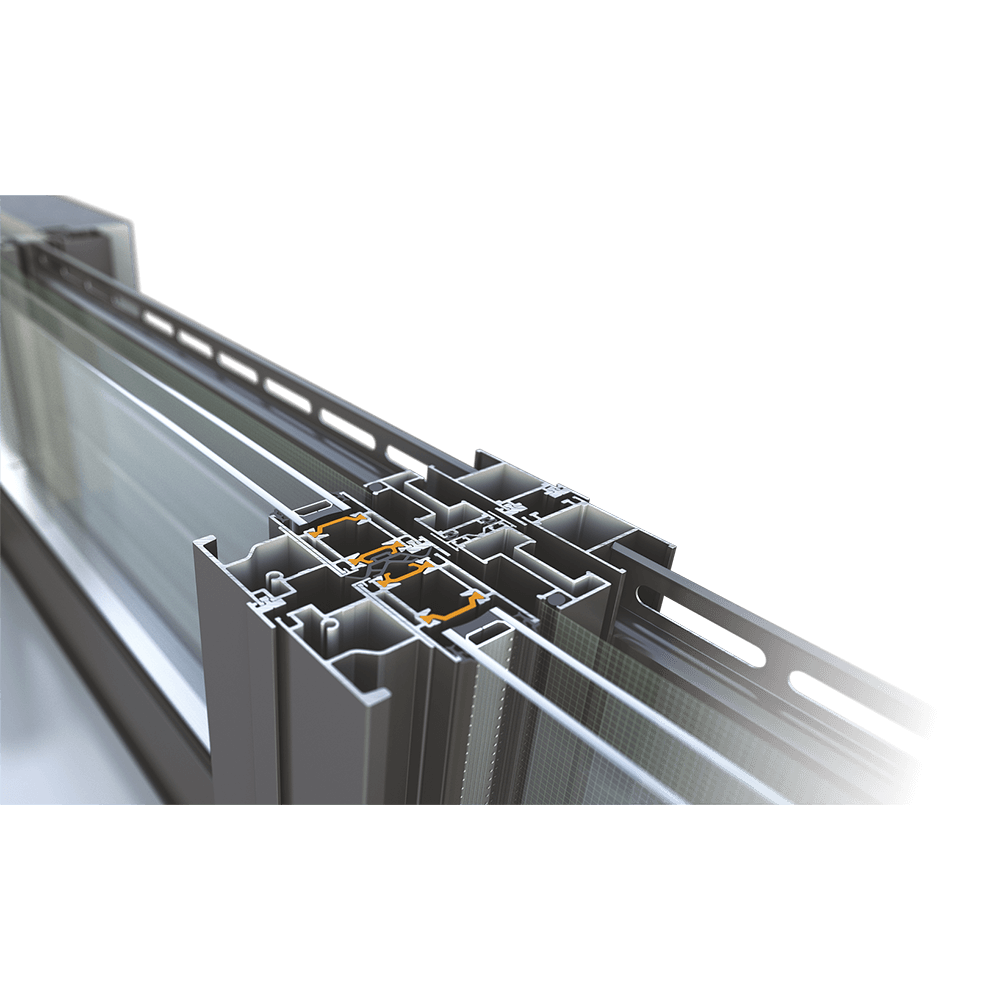

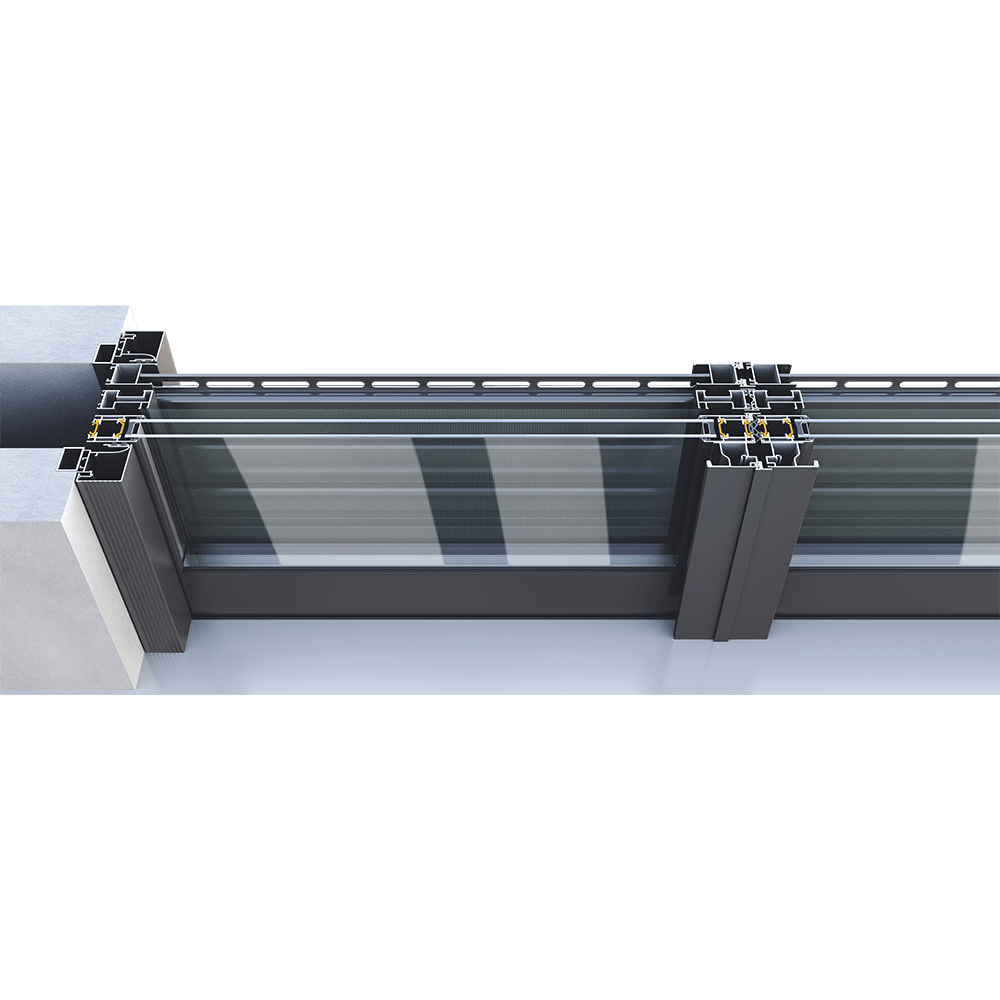

Minimum Visible Aluminum Width at the Central Vertical Column (Interlocking Profile) | 25mm // 0.98" |
Sash Weight | Up to 180kg |
TYPOLOGIES:
Horizontal sliding, meeting stile, pocket sliding. Combinations with fixed lights. Combinations with fly-screen and shutter/rolling shutter.
01  Double horizontal sliding sash | 02  Triple horizontal sliding sash | 03  Four horizontal sliding sashes with meeting stile | 04  Double horizontal parallel sliding window with fly-screen |

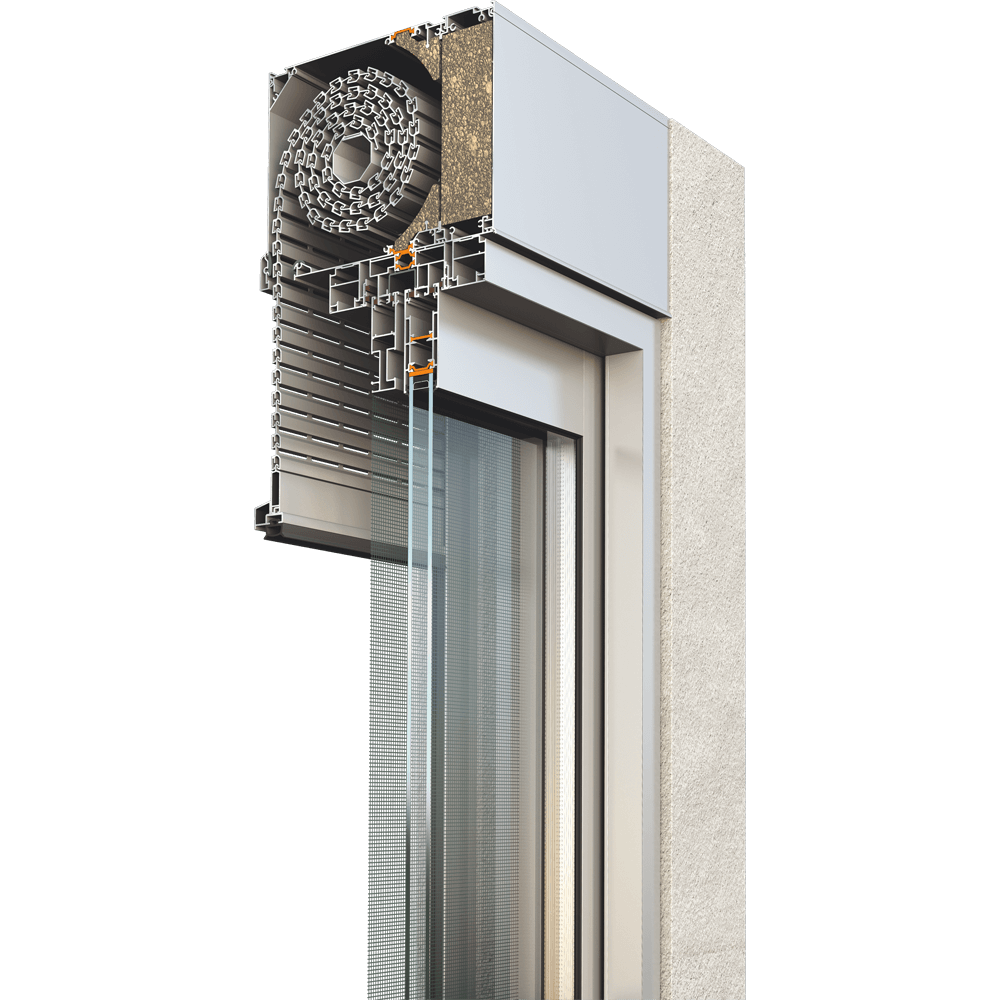

05  Four horizontal sliding sashes with meeting stile and fly-screen | 06  Double horizontal parallel sliding window with fly-screen & rolling shutter | 07  Horizontal sliding pocket sash with shutter | 08  Single horizontal sliding pocket sash with fly-screen and shutter |
09  Double pocket horizontal sliding window with fly-screen & shutter | 10  Single horizontal sliding pocket sash with fly-screen & rolling shutter | 11  Double horizontal parallel sliding window with fixed fanlight | 12  Double sliding sash with fixed light |
CERTIFICATIONS:
DOWNLOADABLE MATERIAL:
SMARTIA Brochure
System Specs
Technical Brochure
Fly-Screen Brochure
