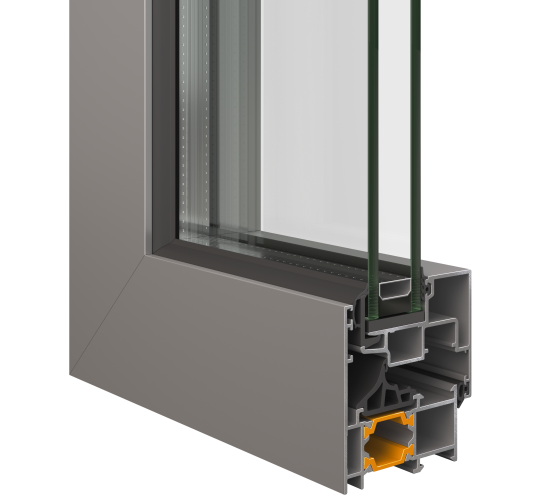

Alumil SMARTIA M9660 PHOS
SMARTIA M9660 PHOS offers concealed sash typologies. Thanks to its minimal design, it maximizes natural light and further reduces the visible aluminium width whistle maintaining the high thermal insulation and waterproofing performance that characterize all opening thermal insulation systems.
Operation Type
Tilt & Turn
Manufacturer
Alumil
Available Colors
Color
Color
Color
Color
Color
Color
Color Options
Neokem Prisma Sahara
 509 Mirage |  510 Sky |  511 Breeze |  507 Silver |  502 Grey |  504 Blue |  503 Greyblue |
 501 Black |  505 Green |  512 Oasis |  513 Flame |
Neokem Prisma Mesogeios
 801 Corsica |  802 Cassis |  803 Alexandria |  804 Alicante |  805 Valencia |  806 Antibes |  807 Nice |
 808 Rosetta |  809 Trieste |  810 Thera |  811 Andros |  812 Amalfi |  813 Positano |  814 Hydra |
 815 Crete |
Neokem Prisma Cosmos
 601 Meteora |  602 Aztec |  603 Nubia |  703 Palmyra |  702 Delos |  605 Atlas |  606 Duomo |
 610 Rio |  607 Manhattan |  611 Maui |  608 Aegean |
Ammos
 RAL 1013 |  RAL 1015 |  RAL 1019 |  RAL 3005 |  RAL 5003 |  RAL 5010 |  RAL 6005 |
 RAL 6009 |  RAL 7006 |  RAL 7012 |  RAL 7015 |  RAL 7016 |  RAL 7021 |  RAL 7022 |
 RAL 7024 |  RAL 7030 |  RAL 7034 |  RAL 7035 |  RAL 7038 |  RAL 7039 |  RAL 7040 |
 RAL 7042 |  RAL 7047 |  RAL 8003 |  RAL 8011 |  RAL 8014 |  RAL 8017 |  RAL 9005 |
 RAL 9010 |  RAL 9016 |
Sable Color Chart
Image Gallery
Specifications
KEY FEATURES:
Excellent value for money
Enhanced natural light thanks to the system's minimal design.
Ease of use and high functionality
Elegant appearance thanks to straight lines of profiles.
Suitable for all climatic zones thanks to high level of thermal insulation.
Ideal for new and renovated residential and office buildings.
High certified performances
FEATURE | VALUE |
Operation Type | Tilt & Turn |
Mechanism | Euro-nut |
Thermal Permeability | from 2,5up to 3,6 W/m²K |
Security | RC2 |
Sound Reduction | 45dB |
Sealing Method | Perimetrical at 3 levels with EPDM gaskets & foam EPDM gaskets |
Waterproofing | 7A (300Pa) |
Wind Pressure Resistance | C3/B3 |
Air Permeability | 4 |
Construction Depth | 56mm // 2.2" |
Glazing Type | Double |
Glazing Thickness | 26mm // 1.02" |
Exterior Shape | Flat |
Minimum Threshold Height | 15mm // 0.59" |
Type of Thermal Insulation | Polyamides 12mm width |
Minimum Visible Aluminum Face Height | 70,5mm // 2.77" |
Minimum Visible Aluminum Width at the Central Vertical Column (Adjoining Profile) | 101mm // 3.97" |
Sash Weight | Up to 130kg |
TYPOLOGIES:
For all tilt & turn typologies
01  | 02  | 03  | 04  | 05  |
One sash tilt & turn | Single tilt & turn with fixed light | Single leaf pivot door with fixed light | Single tilt & turn with side-hung casement | Double tilt & turn window with top hung |
CERTIFICATIONS:
DOWNLOADABLE MATERIAL:
SMARTIA Brochure
System Specs
Technical Brochure
