Alumil SMARTIA M630 PHOS

Name: Alumil SMARTIA M630 PHOS
Brand: Alumil

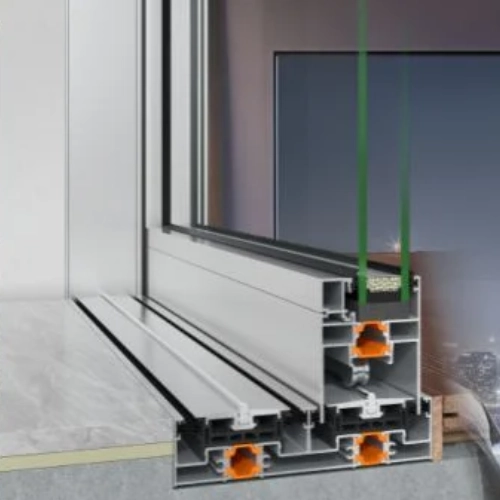

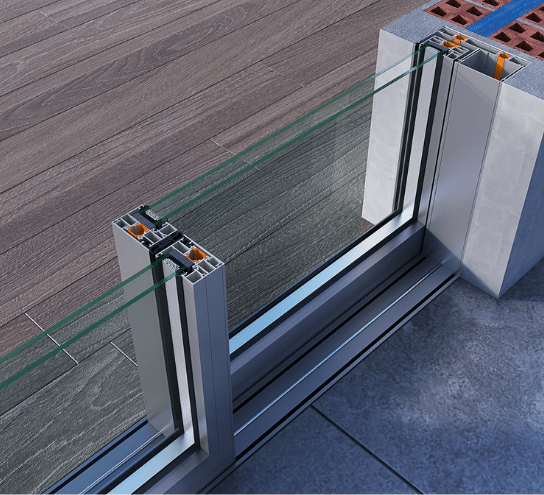

The sliding system SMARTIA M630 PHOS offers a minimal touch in contemporary residences combining minimal design with high thermal performance. Following the “less is more” philosophy, all aluminium profiles can be hidden into the wall providing a total sense of comfort with top functionality and enhanced safety.

Operation Type

Sliding

Manufacturer

Alumil

Available Colors

Color

Color Options

Neokem Prisma Sahara

509 Mirage	510 Sky	511 Breeze	507 Silver	502 Grey	504 Blue	503 Greyblue
501 Black	505 Green	512 Oasis	513 Flame

Neokem Prisma Mesogeios

801 Corsica	802 Cassis	803 Alexandria	804 Alicante	805 Valencia	806 Antibes	807 Nice
808 Rosetta	809 Trieste	810 Thera	811 Andros	812 Amalfi	813 Positano	814 Hydra
815 Crete

Neokem Prisma Cosmos

601 Meteora	602 Aztec	603 Nubia	703 Palmyra	702 Delos	605 Atlas	606 Duomo
610 Rio	607 Manhattan	611 Maui	608 Aegean

Ammos

RAL 1013	RAL 1015	RAL 1019	RAL 3005	RAL 5003	RAL 5010	RAL 6005
RAL 6009	RAL 7006	RAL 7012	RAL 7015	RAL 7016	RAL 7021	RAL 7022
RAL 7024	RAL 7030	RAL 7034	RAL 7035	RAL 7038	RAL 7039	RAL 7040
RAL 7042	RAL 7047	RAL 8003	RAL 8011	RAL 8014	RAL 8017	RAL 9005
RAL 9010	RAL 9016

Sable Color Chart

Image Gallery

Specifications

KEY FEATURES:

Elegant coziness full of natural light thanks to the system's minimal design and the wide glazing surfaces
High energy saving thanks to the exceptional thermal performance
Exceptional sound insulation
Maximum ease of use and high functionality
Ease of access, ideal for people with special needs and children
Wide variety of typologies and solutions
Exceptional quality with certified performances

FEATURE	VALUE
Operation Type	Sliding
Thermal Permeability	1,43 W/m²K
Security	RC2
Sound Reduction	42dB
Sealing Method	Perimetrical with tri-fin brushes
Waterproofing	7A
Wind Pressure Resistance	C5
Air Permeability	4
Construction Depth	63mm // 2.48"
Glazing Type	Double - Triple
Glazing Thickness	up to 32mm // 1.259"
Exterior Shape	Flat
Minimum Threshold Height	32mm // 1.259"
Type of Thermal Insulation	Polyamides, Thermoplastic
Minimum Visible Aluminum Face Height	Concealed Profiles
Minimum Visible Aluminum Width at the Central Vertical Column (Interlocking Profile)	44mm // 1.73"
Sash Weight	Up to 250kg

TYPOLOGIES:

Horizontal sliding sashes, meeting stile, combinations with fixed lengths

01	02	03	04	05	06
Double horizontal sliding sash	Double horizontal parallel sliding window with fly-screen	Single sash sliding window with fixed pane	Triple horizontal sliding sash	Four horizontal sliding sashes with meeting stile	Four horizontal sliding sashes with meeting stile & fly-screen
07	08	09	10	11	12
Double horizontal sliding sash. Meeting stile with fixed lights	Single pocket sash	Double pocket sash with meeting stile	Single pocket sash with fly-screen	Double pocket sash. Meeting stile with fly-screen	Corner typology
